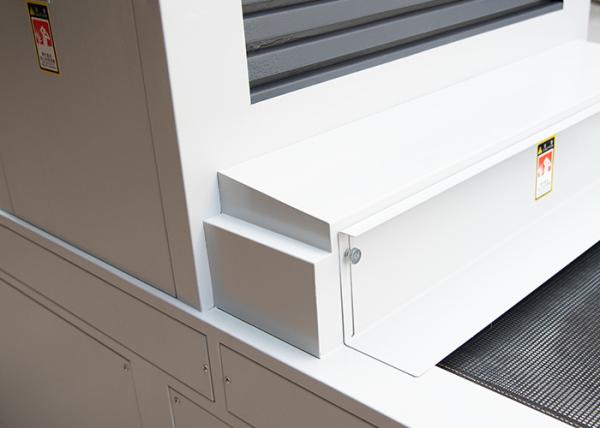

Various UV Color 13KW 800mm Belt UV Curing Machine
Various UV Color 13KW 800mm Belt UV Curing Machine
Various UV Color 13KW 800mm Belt UV Curing Machine
Various UV Color 13KW 800mm Belt UV Curing Machine
Various UV Color 13KW 800mm Belt UV Curing Machine
Various UV Color 13KW 800mm Belt UV Curing Machine
Specifications
Brand Name :
YI JIANG
Model Number :
YJ800-T2
Place of Origin :
China
MOQ :
1station
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10work days
Delivery Time :
10work days
Packaging Details :
Wooden Case
Product Name :
UV Curing Machine
Voltage :
380V AC 50Hz
Lamp Power :
5.6KW/2PCS
Total Power :
13KW
Height Of Inlet And Outlet :
100mm
Mesh Belt Width :
800mm
Mesh Belt Material :
High Temperature Resistant Teflon
Cooling Method :
Wind Cooling
Description

Small UV Dryer Display UV Curing Machine

Application area:
UV Curing for flat products. It is fit to UV drying PVC ,paper offset UV varnish ,UV polishing,UV glue,
soft PCB after printing UV ink , plastic UV printing. Electronic product UV spray, packing products UV drying
Used for drying screen printing ink of UV ultraviolet (UV) light curing. Can be used in UV light oil, grinding,
wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
Our machine most strong point is that it has 2 suits of UV lamps and 2 suits of UV control systems.
Every system can be used independence. It use Teflon belt to bear high temperature.

Technical Parameters

BrandYI JIANGPower18KW
ModelYJ800-T2Conveying width800mm
Conveying materialTeflon mesh beltTransfer speed0~7m/min
Table height980mmQuality assurance1 year
Overall machine size3000mm*980mm*1600mmUv lamp light50~120mm(adjustable)
Illuminate width600mmCooling systemAir cooling
Power configuration5.6kw copper-coil transformer+UV capacitanceShell materialSheet metal
Main peak wave value365nmNumber of lamp tube3pc
Reflector housingPolished aluminum reflector housing with imported reflective aluminum sheetsLamp power5.6kw380V
Lenth of feed end1000mmLength of discharge end1000mm
Machine materialAnti - rust treatment after the surface paint treatmentCabinet colorPale yellow
Power supplyThree-phase 380V/50HZHigh inlet and outlet100mm
DrumEnsure smooth product deliveryFurnace body length800mm
High inlet and outletAdd nylon casters at the bottom*4Lamp quality assurance800H

Note:Can be customized according to customer requirements
