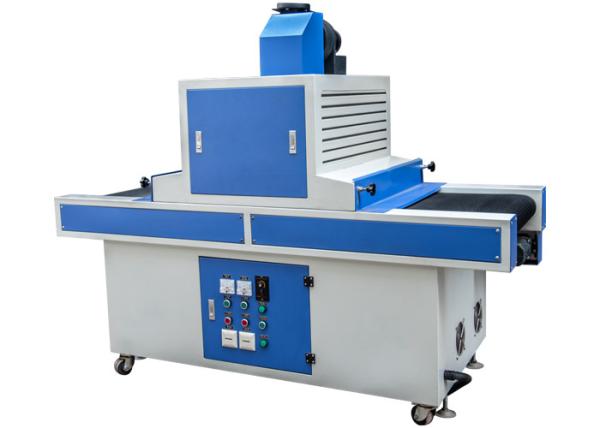

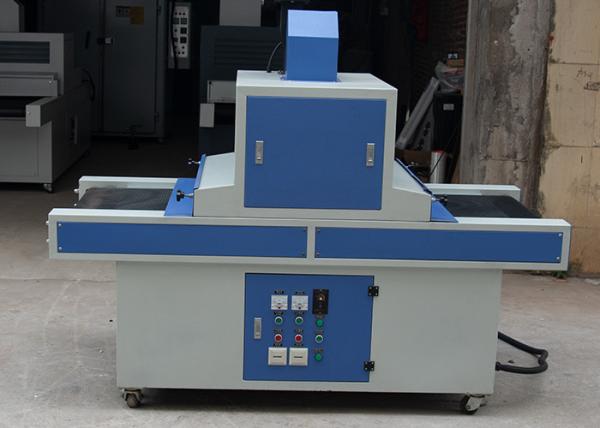

7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
7.5KW 400mm Illumination Hot Air Drying Oven For UV Ink
Specifications
Brand Name :
YI JIANG
Model Number :
YJ400-202
Place of Origin :
China
MOQ :
1station
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10work days
Delivery Time :
10work days
Packaging Details :
Wooden Case
Product Name :
UV Curing Machine
Voltage :
380V AC 50Hz
Lamp Power :
3KW/2PCS
Total Power :
7.5KW
Height Of Inlet And Outlet :
100mm
Mesh Belt Width :
400mm
Mesh Belt Material :
High Temperature Resistant Teflon
Cooling Method :
Wind Cooling
Description

Mobile Phone / Electronic Industry / Ultraviolet Industrial Curing Oven

Application area:
UV Curing for flat products. It is fit to UV drying PVC ,paper offset UV varnish ,UV polishing,UV glue,
soft PCB after printing UV ink , plastic UV printing. Electronic product UV spray, packing products UV drying
Used for drying screen printing ink of UV ultraviolet (UV) light curing. Can be used in UV light oil, grinding,
wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
Our machine most strong point is that it has 2 suits of UV lamps and 2 suits of UV control systems.
Every system can be used independence. It use Teflon belt to bear high temperature.

Technical Parameters

Brand YI JIANG Power 7.5KW
Model YJ400-202 Conveying width 400mm
Conveying material Teflon mesh belt Transfer speed 0~7m/min
Table height 400mm Quality assurance 1 year
Overall machine size 2000mm*580mm*1600mm Uv lamp light 50~120mm(adjustable)
Illuminate width 400mm Cooling system Air cooling
Power configuration 5.6kw copper-coil transformer+UV capacitance Shell material Sheet metal
Main peak wave value 365nm Number of lamp tube 2pc
Reflector housing Polished aluminum reflector housing with imported reflective aluminum sheets Lamp power 3kw380V
Lenth of feed end 400mm Length of discharge end 400mm
Machine material Anti - rust treatment after the surface paint treatment Cabinet color Pale yellow
Power supply Three-phase 380V/50HZ High inlet and outlet 100mm
Drum Ensure smooth product delivery Furnace body length 800mm
High inlet and outlet Add nylon casters at the bottom*4 Lamp quality assurance 800H

Note:Can be customized according to customer requirements
