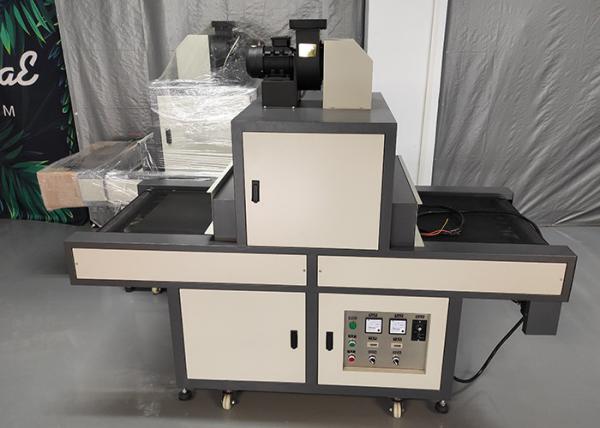

UV Ink Curing Equipment

Scope of application: UV UV ink curing, UV UV glue curing, UV varnish curing and UV coating,

UV roll coating, UV varnishing of wood floors, wooden doors, furniture, UV curing and drying, or use alone.

Performance characteristics: wide format, strong load capacity, practical.

UV lamp layout: the top lamp double lamp lamp layout;
Adjustment of UV lamp: adjust the height and angle of each lamp individually;

The UV lamp adopts the condensing design, and the curing is even;
Forced air cooling to ensure proper temperature in the UV room;
The replacement of the UV lamp adopts a closed door device, which is easy to maintain.

The vertical cabinet is equipped with universal wheels for easy movement.

technical parameter:

Power requirements: single-phase 220VAC (power frequency AC) 50HZ (hertz)
Overall power: about 2.2KW (kw)
Dimensions: 1330 L (length) × 520W (width) × 120H (height) mm
Conveying speed: 0-4m/min (m/min)
Conveying width: 300mm (mm)

Mesh belt material: Teflon high temperature resistant mesh belt, matching unpowered roller
Cooling method: forced air cooling
Light source type: high-pressure Hg mercury lamp
Light wire power: 80w/cm
Light source configuration: 1KW *2.

Tube length: 300MM

Lamp timing: each lamp is independently equipped with a brand timer, which is intelligently displayed; the time can be cleared to facilitate lamp maintenance.
Light source life: According to accelerated equivalent test, the average is greater than 1000 (h) hours, and the light attenuation is not less than 80%.

Main peak wavelength: 365nm (nm)
Typical features: aluminum reflector, multi-angle curing, suitable for products with a certain thickness
Typical application: UV curing of furniture paint, UV varnish curing, suitable for non-explosion-proof environment.

Application examples: data cables, flat cables, glass bonding UV glue curing, etc.
