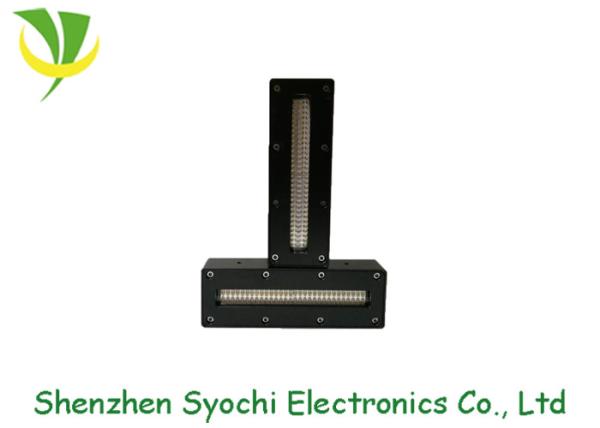

LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity
LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity
LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity
LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity
Specifications
Brand Name :
Syochi
Model Number :
SLLD-1201528B-01
Certification :
CE standard & RoHs standard
Place of Origin :
Guangdong,China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Item name :
UV LED curing lamp
UV wavelength :
365-395nm
Main Parts :
LED lamps and controller
Controller size :
57x29x42cm
Luminous Intensity :
5-12W/cm2
Total weight :
23kg
Operating Temperature :
10-50℃
Warranty :
One year
Description

Space saving water cooling Ultraviolet led curing system purple LED

UV curing

Specifications

Model No. SLLD-1201528B-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm) 395(customized) Input AC220V
Emitting size (mm) 120x15 Total Power (W) 700
Irradiate distance (mm) 5-10 Power per Lamp (W) 300
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional)

3-24V DC
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: NO mercury. NO Ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity

LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity

LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.

Company Photos

LED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous IntensityLED UV Curing Systems For Printing , LED Ultraviolet Led Light 5-12W/Cm2 Luminous Intensity

Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
