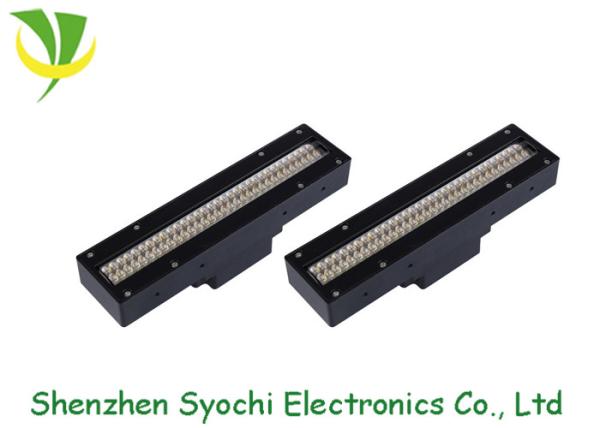

High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing
High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing
Specifications
Brand Name :
Syochi
Model Number :
SLCD-2002556B-01
Certification :
CE & RoHs standard
Place of Origin :
Guangdong, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton or Wooden/Plastic box
Product name :
UV LED curing lamp
UV wavelength :
395nm (optional)
Curing time :
Immediate drying
Main parts :
LED lamps and controller
Luminous Intensity :
5-12W/cm2
Power :
750w
Description

High power 750W UV LED module with 395nm wavelength for UV

ink curing


Specifications

Model No. SLCD-2002556A-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V
Emitting size (mm) 200x25 Total Power (W) 2200
Irradiate distance (mm) 5-10 Power per Lamp (W) 750
Irradiation intensity (W/cm²) 9-18, adjustable Control method (optional)

3-24V DC
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.

High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.

High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing

High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.


Company Photos

High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing

Applications

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.


High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing
