Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles
Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles
Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles
Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles
Specifications
Brand Name :
Syochi
Model Number :
SL-402028A-01
Certification :
CE standard & RoHs standard
Place of Origin :
Shenzhen, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Technology :
UV LED curing system
UV wavelength :
365nm-405nm available
LED module size :
40x20mm
Emitting Color :
Purple
Cooling way :
Water cooling
Main parts :
LED lamps and controller
Protected mode :
Temperature and traffic
Optical Attenuation :
5%
Description

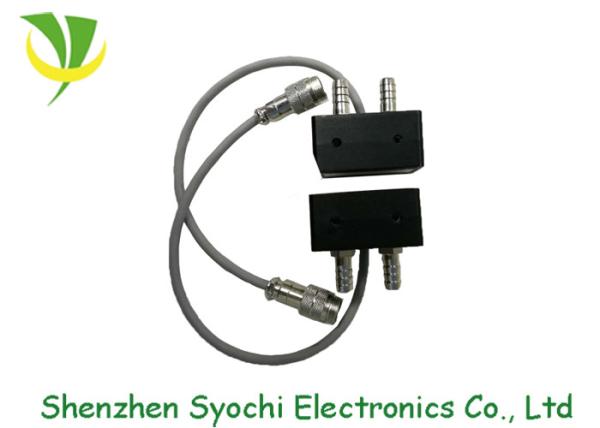

UV LED drying system with 40x20mm UV LED module for Epson

DX7 nozzles


Specifications

Model No. SL-402028A-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 150
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 40x20 Total Power (W) 300
Irradiate distance (mm) 5-10 Power per Lamp (W) 100
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional)

level control

(3-24V)
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: NO mercury. NO Ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles

Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 NozzlesPurple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 NozzlesCompany Photos

Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 NozzlesPurple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles

Purple LED Uv Drying Systems 40x20mm LED Module Size For Epson DX7 Nozzles


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.

Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
