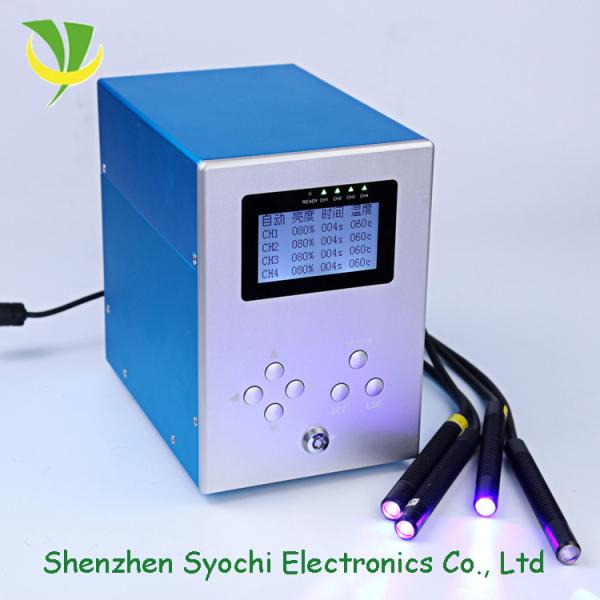

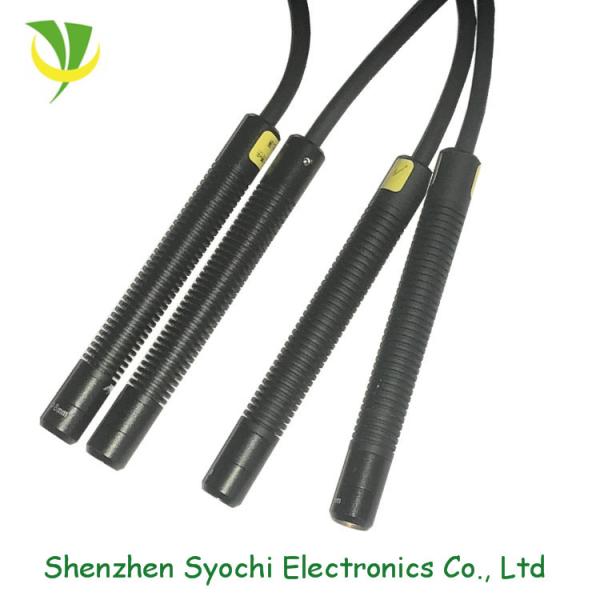

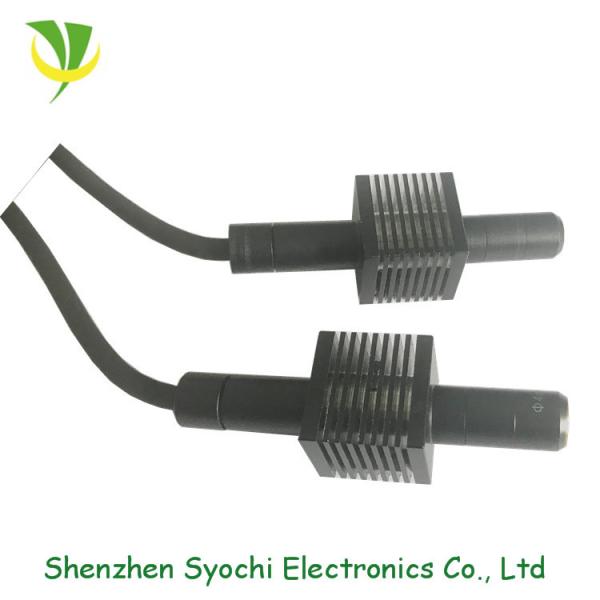

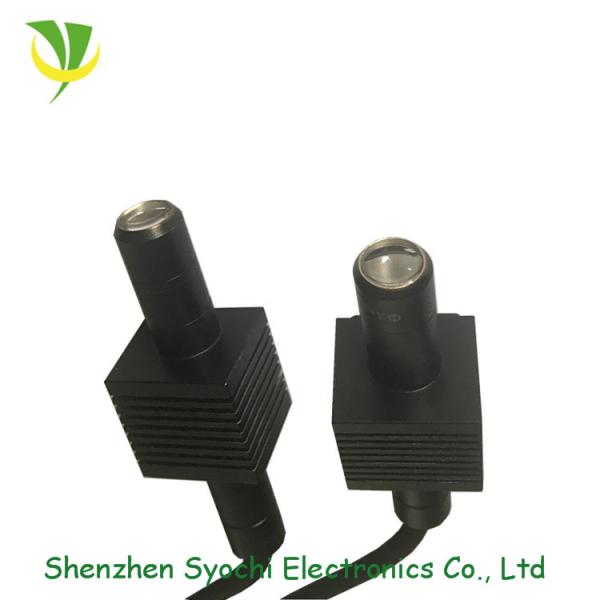

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
Specifications
Brand Name :
Syochi
Model Number :
DG2L-N36-F4
Certification :
CE&RoHs certification
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
500 set per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton or Wooden/Plastic box
Product name :
UV LED Curing System for Adhensive
UV wavelength :
365 nm (375, 385, 395, 405 available)
Spot diameter :
4-12 mm
Cooling method :
fan or natural cooling
Lifespan :
>20,000 H
Main parts :
controller, led lamps, power adapter
Warranty :
1 year
Description

High intensity 365nm UV LED curing system for adhensive

Specifications

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment Model No. DG2L-N36-F4 Qty of UV lamps 1-4 pcs
Spot diameter 4 mm Wavelength 365nm (375nm, 385nm, 395nm, 405nm available)
Irradiation intensity 1982 mW/cm² Control method button, foot pedal, I/O, RS232C port
Suggested irradiation distance 7-16 mm Cooling way fan or natural
cooling
Total Power ≤25W Size of controller L190*W120*H170 mm
Feature& Advantage

• Powerful intensity up to 9000mW/cm2

• 365nm, 385nm, 395nm, 405nm, 450nm pure UV light source

• Multiple control modes : button, foot pedal, digital I/O, RS232C port

• Single wavelength UV light output, no harmful thermal effect

• Environmental friendly, NO mercury. NO Ozone

• Low power consumption and energy saving

• The led lights can be individual or group controlled by one controller

• Stable and uniform UV irradiation

• Long working life and low attenuation

• Free layout, space saving

• NO warm-up time

• Low temperature

• UV output adjustment: from 0 to 100%

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment

Applications

• UV glue, UV adhesive, UV gel curing

• Electronic components fixation curing

• Hard disc, micro-generator, earphone curing

• Watch precision components manufacturing

• DVD/CD light head curing

• Optical lens curing

• LCD sealing curing

• Medical equipment curing

Standard Configuration

1 pc controller

1~4 pcs led lights

1~4 pcs lens

1 pc power adaptor

If foot pedal, ati-UV goggle, led head holder are needed pls inform us before your order is placed.

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment

1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.

2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.

3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.

4. Syochi has nearly 20 patents to keep our products no disputes.

5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.

Certifications and Patents

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment

Company Photos

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.Don't hesitate to contact our sales for more infos!

High Intensity UV Adhesive Curing Systems , Free Layout LED Uv Curing Equipment
