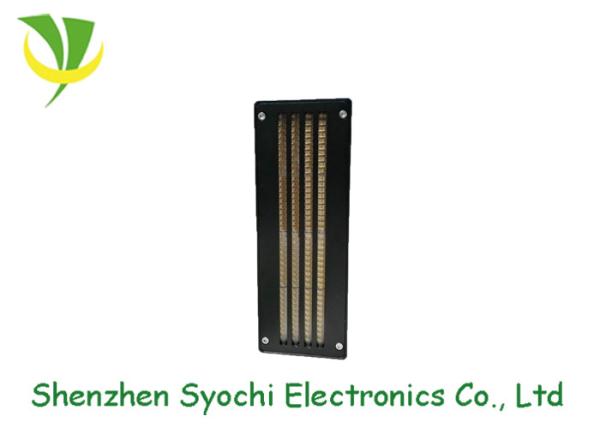

Customized Wavelength LED UV Lamp For Printing Machine , LED Uv Ink Curing Lamp
Customized Wavelength LED UV Lamp For Printing Machine , LED Uv Ink Curing Lamp
Specifications
Brand Name :
Syochi
Model Number :
SLCD-1603035B-01
Certification :
CE standard & RoHs standard
Place of Origin :
Shenzhen, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Technology :
LED UV lamp
Wavelength :
365nm-405nm customized
UV Emittingsize :
160x30mm
Cooling way :
Water cooled
Intensity :
5-12W/cm2
Curing time :
Immediate drying
Viewing Angle :
70-140 degree
Application :
UV printing
Description

CE&RoHs standard 395nm UV wavelength LED UV lamp for UV

printing machine

Specifications

Model No. SLCD-1603035B-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V
Emitting size (mm) 160x10x4 Total Power (W) 1400
Irradiate distance (mm) 5-10 Power per Lamp (W) 400
Irradiation intensity (W/cm²) 5-12 Control method (optional)

level control

(3-24V)
Ambient temperature (℃) 10-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

Customized Wavelength LED UV Lamp For Printing Machine , LED Uv Ink Curing Lamp

Customized Wavelength LED UV Lamp For Printing Machine , LED Uv Ink Curing Lamp


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.

Certifications and Patents

Company Photos

Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

Customized Wavelength LED UV Lamp For Printing Machine , LED Uv Ink Curing Lamp

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.

Don't hesitate to contact our sales for more infos!
