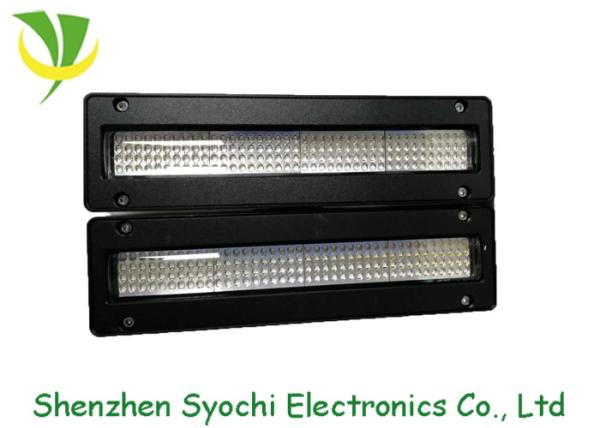

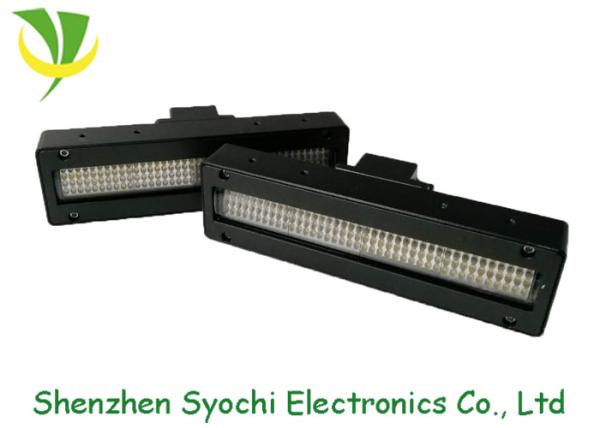

365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity
365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity
365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity
365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity
Specifications
Brand Name :
Syochi
Model Number :
SLLD-1602028B-02M
Certification :
CE standard & RoHs standard
Place of Origin :
Shenzhen, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Technology :
LED UV curing light
UV wavelength :
365nm-405nm
UV Emittingsize :
160x20mm
Cooling wayLuminous Intensity :
5-12w/cm2
Control Method :
3-24V DC
View angle :
70-140 degree
Lifespan :
20000h
Warranty :
One year
Description

UV printing ink drying 365-405nm LED UV curing light with RoHs

standard

Specifications

Model No. SLLD-1602028B-02M Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm) 395 Input AC220V/50HZ
Emitting size (mm) 160x20 Total Power (W) 1300
Irradiate distance (mm) 5-10 Power per Lamp (W) 400
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional)

level control

(3-24V)
Ambient temperature (℃) 10-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: NO mercury. NO Ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity

365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.

Company Photos

365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.

Don't hesitate to contact our sales for more infos!

365-405nm Led UV Curing Light 5-12w/Cm2 Cooling Way Luminous Intensity
