UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan
UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan
Specifications
Brand Name :
Syochi
Model Number :
SLCD-12525-58-2525B-01
Certification :
CE standard & RoHs standard
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Product name :
LED UV light
Wavelength :
365nm-405nm
UV Emitting window :
Double window
Control Method :
3-24V DC
Emitting Color :
Purple
Energy saving :
80%
UV output adjustment :
From 1% to 100%
Lifespan :
20000
Description

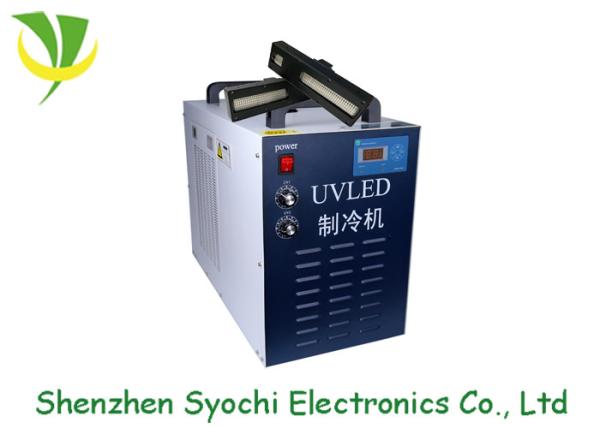

UV varnish units curing water cooled UV LED immediate drying

system


Specifications

Model No. SL-12525-58-2525B-01Qty of UV lamp(pcs)2
Cooling waywater coolingModel No. of Water chiller1500
Wavelength (nm)395InputAC220V, (optional)
Emitting size (mm)125x25+25x25Total Power (W)1300
Irradiate distance (mm)5-10Power per Lamp (W)380
Irradiation intensity (W/cm²)5-12, adjustableControl method (optional)

level control

(3-24V)

Ambient temperature (℃)10-50Lifespan (H)20000

AdvantagesFeatures
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan

UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.


Company Photos

UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 LifespanUV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan

Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
UV Varnish Units Curing Water Cooled UV LED Immediate Drying System 20000 Lifespan

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
Don't hesitate to contact our sales for more infos!
