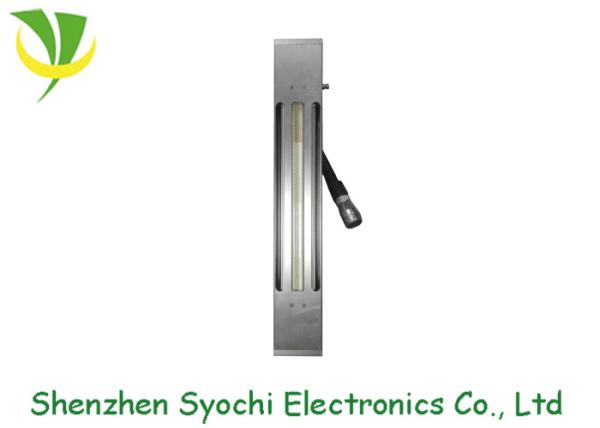

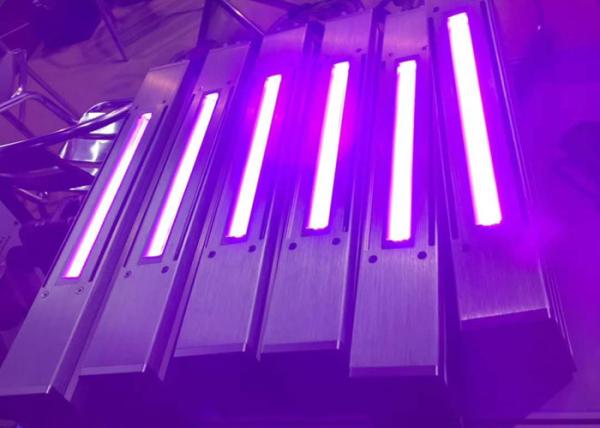

Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Specifications
Brand Name :
Syochi
Model Number :
Customized
Certification :
CE&RoHs certification
Place of Origin :
Shenzhen, China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
15-30 workdays
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Product name :
LED UV curing lamp
UV wavelength :
365nm-405nm available
Emitting Color :
Purple
UV Emitting window sizes :
Customized
Cooling method :
Water cooling
Main parts :
UV LED lamps, Power supply, Chiller
Luminous Intensit :
2-20w/cm2
Operating Temperature :
0-50℃
Description

395nm LED UV curing lamp for high speed rotary printing press

Specifications

Model No. of lamp Customized Qty of UV lamp(pcs) 1-8
Cooling way Water cooling Ambient temperature (℃) 0-50
Wavelength (nm) 395 Input AC220V, 50Hz
Emitting size (mm) Customized Power(W) Customized
Irradiate distance (mm) 5-10 Control method (optional) level control
(3-24V)
Irradiation intensity (W/cm²) 2-20, adjustable Lifespan 20000


Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: NO mercury. NO Ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well


Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press

Applications

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press


Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.


Company Photos

Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
Portable 395nm LED Uv Ink Curing Lamp For High Speed Rotary Printing Press
