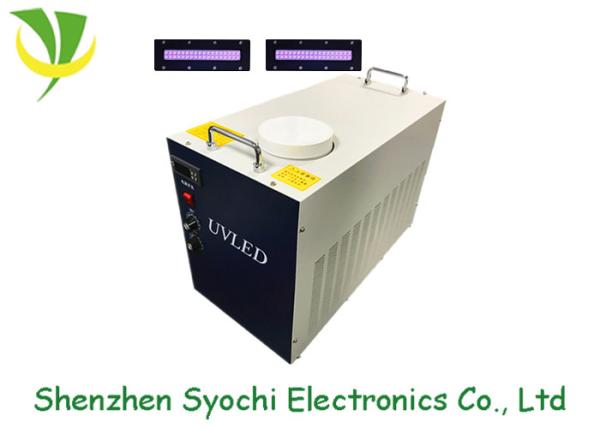

CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles
CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles
Specifications
Brand Name :
Syochi
Model Number :
SLLD-1201556A-01
Certification :
CE & RoHs standard
Place of Origin :
Shenzhen, China
MOQ :
one set
Price :
USD 1200-1800 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Item name :
UV LED curing light
Emitting Color :
UV 365-395nm
Curing time :
Immediate drying
UV output adjustment :
From 1% to 100%
Cooling Method :
Water cooled
Main parts :
LED lamps and controller
Description

CE certificate 365-405nm UV LED light curing system for KM1024

nozzles

Specifications

Model No. of lamp head SLLD-1201556A-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm), 395 Input AC220V
Emitting size (mm) 120x15 Total Power (W) 1300
Irradiate distance (mm) 5-10 Power per Lamp (W) 300
Irradiation intensity (W/cm²) 5-12 Control method (optional)

l3-24V
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.		 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles

CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles

CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.


Company Photos


CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles


Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.


CE Certificate UV Light Curing System Table And Uniform UV Irradiation For KM1024 Nozzles

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
