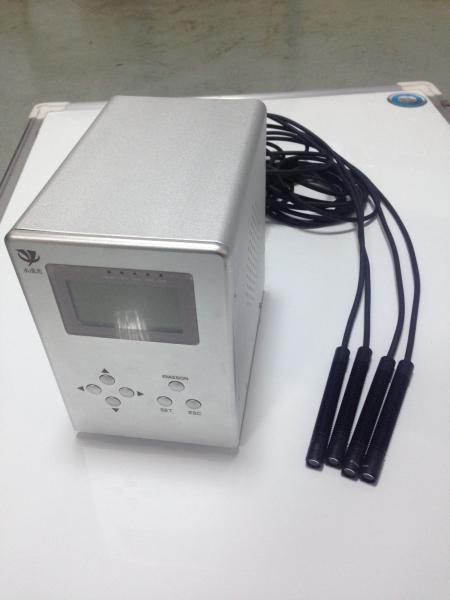

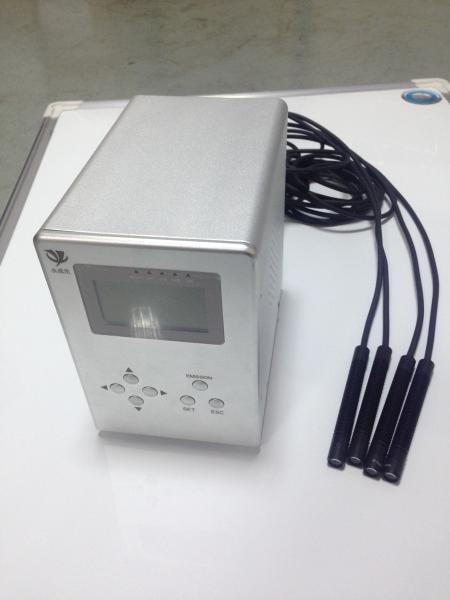

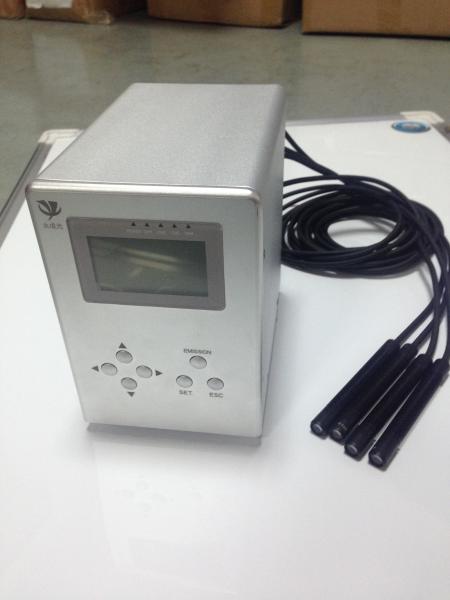

25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
Specifications
Brand Name :
SYOCHI
Model Number :
DG2L-N36-F4
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
5 SETS
Price :
650USD/SET
Supply Ability :
5000 SET/MONTH
Packaging Details :
PE foam with carton box
raw material :
Metal +uv chips
Spot diameter :
4mm
Irradiation intensity :
1982 mW/cm²
life span :
20000H
warranty :
12 months
Description

shenzhen uv curing lamp Multiple control Low temperature 395nm drying lamp fan cooling uv curing system for printing

Specification


Model No. DG2L-N36-F4 Qty of UV lamps 4 pcs
Spot diameter 4 mm Wavelength 365nm (375nm, 385nm, 395nm, 405nm available)
Irradiation intensity 1982 mW/cm² Control method button, foot pedal, I/O, RS232C port
Suggested irradiation distance 7-16 mm Cooling way fan or natural
cooling
Total Power ≤25W Size of controller L190*W120*H170 mm


Features:Fast, flexible curing and drying

Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.

Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up time which leads faster operation with high productivity.

Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.

Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.

25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines

25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines

25 Watt UV Light Curing System LED Spot Lamp For Cassette Printing Machines
