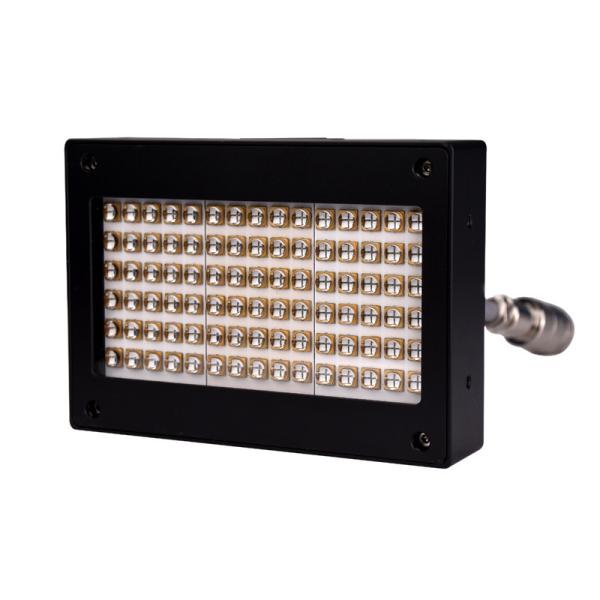

1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
1300W UV LED Module Purple UV Light 365nm 385nm 395nm 405nm For UV curing
Specifications
Brand Name :
Syochi
Model Number :
SL-1206068A-01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
950-1150USD/SET
Payment Terms :
Western Union, T/T
Supply Ability :
7000 SETS/MONTH
Packaging Details :
Cartons
Type :
High Power LED
Wavelength :
365/385/395/405NM
Emitting color :
Purple
Operating temperature(℃) :
1-50
Viewing angle(°) :
120
Warranty :
1 Year
Description

UV LED purple light blue compressor cooling 365nm 385nm 395nm 405nm 1300W uv led module

Model No. of lamp head SL-1206068A-01 Qty of UV lamp(pcs) 1
Cooling way Air cooling Model No. of Water chiller None
Wavelength (nm) 395 Input AC220V, (optional)
Emitting window size (mm) 120*60 Total Power (W) 1300
Irradiate distance (mm) 5-10 Power per Lamp (W) 1000
Irradiation intensity (W/cm²) 0-15 adjustable Control method (optional)

level control

(3-24V)
Ambient temperature (℃) 0-50 Lifespan (H) 20000

Advantage of ultraviolet curing technology

UV curing is a low-temperature, high-speed, solvent-less photochemical process that uses high-intensity electronic ultraviolet (UV) light to change inks, coatings, adhesives or other photo-reactive substances through polymerization into an instantly fixed-in-place solid. “Drying,” by contrast, solidifies chemistry through evaporation or by absorption. Ideally, with UV curing, the cured substances become securely adhered to the substrate onto which they were applied, with adequate depth of cure without being tacky, sticky or flakey.

  • UV dryers take up less space, so shops can utilize more revenue-producing equipment
  • UV uses less energy, therefore significantly cutting operating costs
  • UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
  • UV curing can increase throughput four times over solvent-based processes
  • Clean-up time practically disappears, adding to the time available for production
  • UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
