Specifications
Brand Name :
SYOCHI
Model Number :
SLLD-1401511B-01
Certification :
CE, RoHs
Place of Origin :
GuangDong
MOQ :
One set
Price :
USD 880 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 sets per set
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Technology :
LED UV light
Cooling Way :
Water cooled
Wavelength :
395nm
Colltroller size :
570x290x480mm
Main parts :
LED lamps and controller
Warranty :
1 Year
Description

Epileds Chip Ultraviolet Diode 405nm 400n 395nm 390nm 385nm 380nm 375nm 370nm High Power 20W UV LED 365nm COB

Specifications

Model No. SLLD-1401511B-01 Qty of UV lamp(pcs) 1-2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 140x15 Total Power (W) 1000
Irradiate distance (mm) 5-10 Power per Lamp (W) 350
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional) 5-32v
Ambient temperature (℃) 10-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: 0-100%;
Multiple control modes: Switching, Voltage.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.

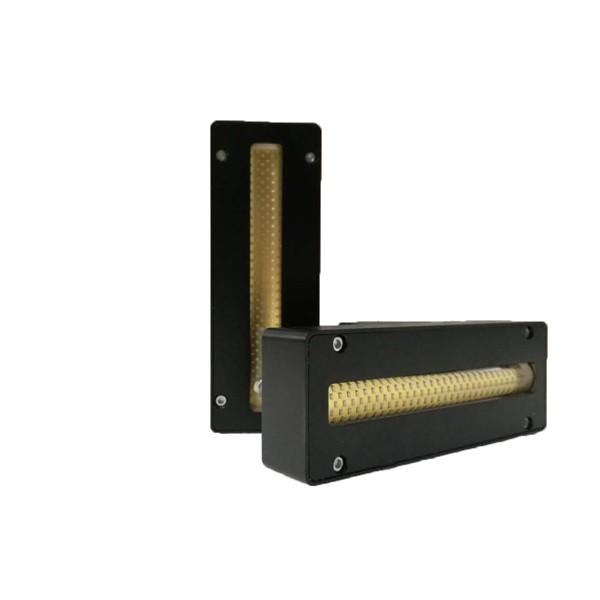

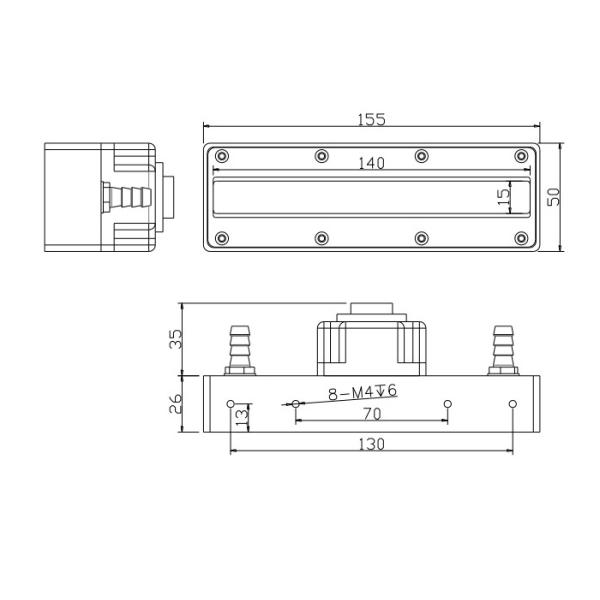

Lamp structure

Epileds Chip Ultraviolet Diode 405nm 400n 395nm 390nm 385nm 380nm 375nm 370nm High Power 20W UV LED 365nm COB

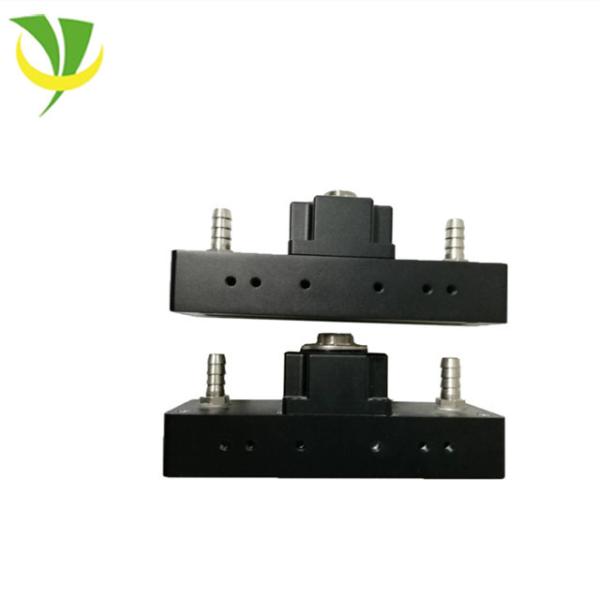

Chiller Structure

Epileds Chip Ultraviolet Diode 405nm 400n 395nm 390nm 385nm 380nm 375nm 370nm High Power 20W UV LED 365nm COB
