700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
Specifications
Brand Name :
SYOCHI
Model Number :
SLMD-702056A-01
Certification :
CE, RoHs
Place of Origin :
GuangDong
MOQ :
One set
Price :
USD 450 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 sets per set
Packaging Details :
Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Type :
UV LED
Cooling Method :
Water cooling
Wavelength :
365nm-405nm available
Protected mode :
Temperature and traffic
Main part :
LED lamps and chiller
Warranty :
1 Year
Description

curing uv led lamp 395nm uv curing system Details lamps for printing machines

Specifications

Model No. SLMD-702056A-01 Qty of UV lamp(pcs) 1-2
Cooling way water cooling Model No. of Water chiller 260
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 70x20 Total Power (W) 700
Irradiate distance (mm) 5-10 Power per Lamp (W) 250
Irradiation intensity (W/cm²) 5-15, adjustable Control method (optional) 5-32v
Ambient temperature (℃) 10-50 Lifespan (H) 20000

Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: 0-100%;
Multiple control modes: Switching, Voltage.
 High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.

Company Photo

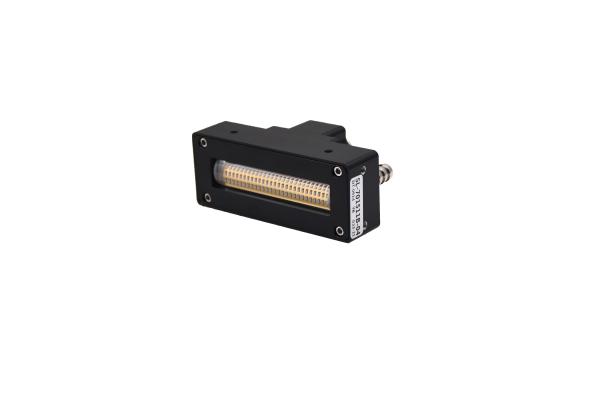

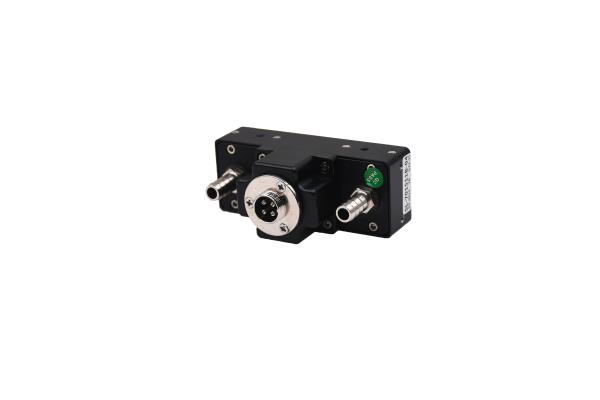

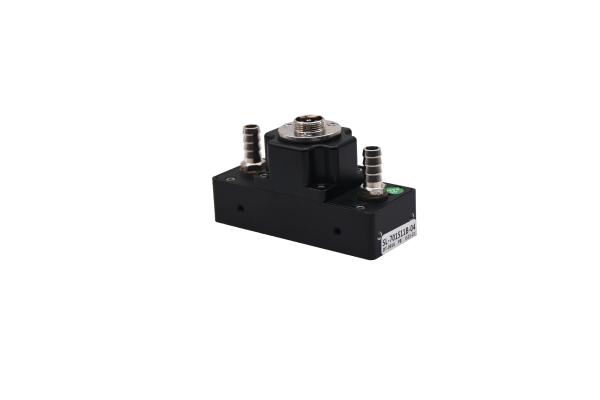

Lamp structure

700W 395nm UV Curing Systems For Printing AC220V Curing Uv Led Lamp
