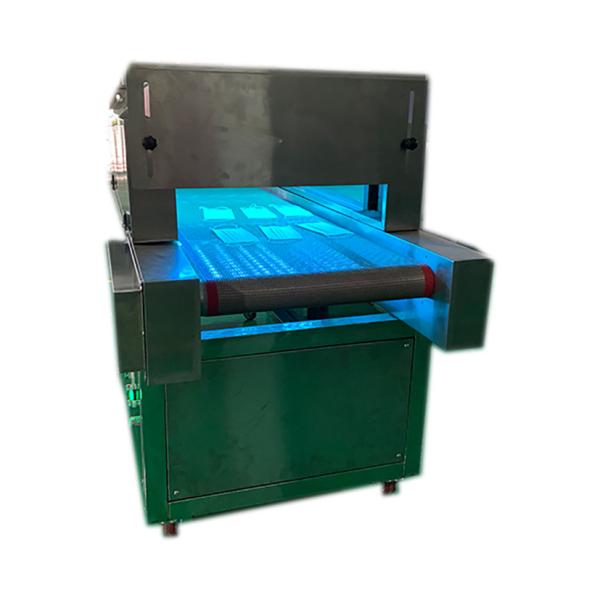

600MM UVC Tube 30A1800W UVC Disinfection System
600MM UVC Tube 30A1800W UVC Disinfection System
Specifications
Brand Name :
Birduv
Model Number :
BUSC01
Place of Origin :
Guangdong, China
MOQ :
1-4 Sets
Price :
negotiable
Payment Terms :
L/C, T/T
Packaging Details :
Carton
Certification :
CE
Type :
Radiation Sterilization Equipments
Instrument classification :
Class I
Warranty :
1 YEAR, 12 Months Warrranty
After-sale Service :
Online Technical Support
Product name :
UV Sterilizer conveyor machine
Application :
Factory
Power :
1800W
Ultraviolet wavelength :
253.7
Voltage :
220V/50HZ
Net Weight :
150KG
Brand :
Birduv
Usage :
UV Sterilizer Disinfection
Material :
Steel
Selling Units :
Single item
Single package size  :
200X50X75 cm
Single gross weight :
220.000 kg
Package Type :
Wood carton
Description

factory equipments uvc box fruit and vegetable sterilizing machine with high sterilization rate
Product Description
Mask Food package disinfection UVC Sterilization Machine Sterilizer UVC Conveyour Sterilization Machine is mainy used for Mask sterilization,food package disinfection, , drinks package sterilization, cosmetics package sterilization, milk industry and so on.
AC Input 220V±5%/50HZ
Power consuption 1800W
Current 30A
Conveyor speed 0-6m/min
UV Lamp 20W/PCS, total 16PCS
UV Lamp length 600MM
Direction for use
1. Connect AC 220V Power
2. Check the Power Indicator if normal
3. Press Start, conveyor start move
4. On the conveyor speed and ajust the speed
5. On UV LAMP, three Group UV lamp can choose ON/OFF
Size Chart of This Design
Equipment full length Working area
Feeding area Discharging operation area Entrance Height Conveyor belt from the ground
2000 mm 1000MM 400mm 400mm Max 200MM, can adjust 750 + 20 mm

Sterilization parameters of uv sterilizer machine :

species name

100%

sterilization

time(s)

 species name

100%

sterilization

time(s)
bacterial Bacillus anthraci 90 virus and viroid Influenza virus 70
clostridium tetani 83 Phagocytosis cell virus 53
coliform 62 Rotavirus 86
Staphylococcus aureus 94 HBV 210
Salmonella 98 Love ko virus 173
Shigella 75 algal bloom blue green algae 213

mycotic

spore

 aspergillus 105 Nematode Eggs 101
Pioneer fungi 99 Paramecium 131
mucormycosis 89 Protozoa 126
Aspergillus niger / / / /

600MM UVC Tube 30A1800W UVC Disinfection System

Company Introduction

Bird UV is a factory based in Shenzhen, China. After 10 years developing, Bird UV have full experience in printing industry,
Adhesive ,wood curing , UVC sterilization and Pulsed UV disinfection.
We offer Strong UV Light Curing System Online
At the beginning of Bird UV, we insist two rules: one quality is first, never send bad quality products to customer, the other is never stop developing new products.
To meet the market requirement, Bird UV have very strong UV Light Curing System with an intensity 30W/CM2 for sheetfed offset printer, high speed flexo printer, gravure printer and web offset printer, all the system can controlled by PLC.
For UV sterillization, company developing widely products line , UV sterilization machine, UV LED portable disinfection lamp, UV LED sterilization bag and box and so on.
Why use UV-C lamps UVC Sterilization

A. Use high-efficiency, high-intensity and ultra-long-life UV-C low-pressure ultraviolet sterilization lamps, with a lamp life of
more than 8000-10000 hours.
B. Use high-transmittance, high-purity quartz sleeves, UV transmittance is above 96%
C. Ultraviolet rays refer to solar rays with a wavelength between 200nm and 380nm, including three types: UV-A wavelength is 315nm
to 380nm, UV-B wavelength is 280nm to 315nm, and UV-C wavelength is 200nm to 280nm. Of the solar rays (290nm-2000nm) reaching the
Earth's surface, about 13% of the ultraviolet rays are UV-A, 97%, UV-B, and 3%, and UV-C is close to zero. Only UV-A and UV-B are
harmful to human skin. UV-C lamps made by a special process for disinfection.
E. Among them, UV-C ultraviolet rays are the most effective ones. UV rays around 253.7nm are the best. Ultraviolet rays can kill a
variety of microorganisms, including bacterial propagules, spores, mycobacteria, viruses, fungi, rickettsials, and mycoplasma,
etc., which has a broad spectrum. Its sterilization principle is to irradiate microorganisms such as bacteria and viruses with
ultraviolet rays to destroy the structure of DNA (DNA) in the body, causing it to die or lose its ability to reproduce
immediately.
F. Can be used to sterilize various dry foods, such as: tableware, disposable tableware, masks, paper, red dates, sweet herbs;
bottles; and other products for surface sterilization. Widely used in hospitals, food, disinfection cabinets, water treatment
equipment.


Packing&Shipping
Wood carton
600MM UVC Tube 30A1800W UVC Disinfection System
600MM UVC Tube 30A1800W UVC Disinfection System
