180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm
180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm
180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm
180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm
Specifications
Brand Name :
YM
Model Number :
UV LED COB Module 5256-2
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
COB UV LED Module 5256-2
Power :
180W
Module Size :
56*52MM
Luminous Size :
25MM*25MM
Voltage :
34-38V
Current :
3-4.2A
Description

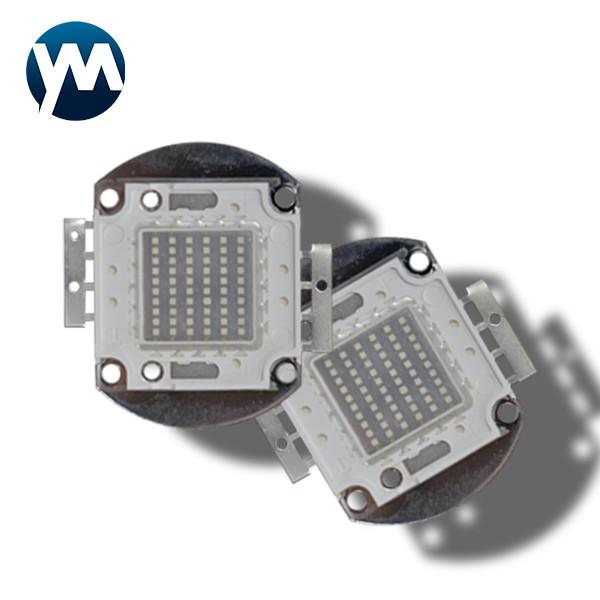

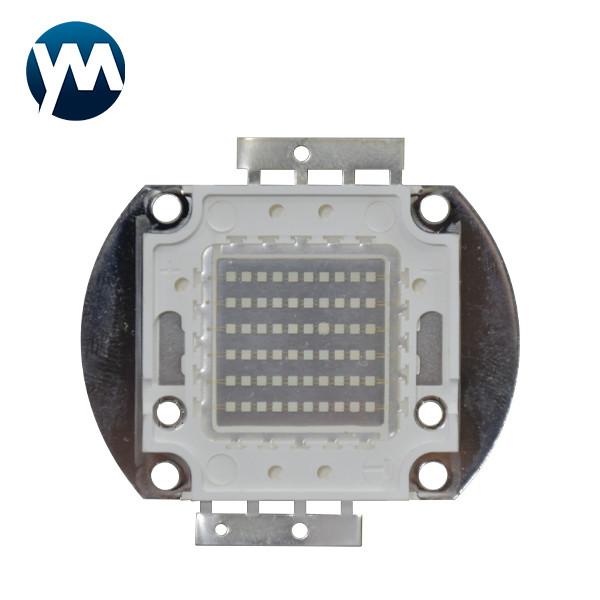

180W COB UV LED Module COB Integrated Module UV Glue Curing Lamp 365nm 395nm​

COB UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name COB UV LED Module 5256-2
Power 180W
Color UV
Number of lamp beads 60 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 180 plane
Module size 56*52mm
Luminous Size 25*25mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 3-4.2A
Chip Material Epileds
Encapsulation process High temperature quartz lens package lamp
Module material COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.

Q3. How to choose UV LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source.

The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
Q4. Why choose YuanMing UV LED?
A: Client-oriented, technology first, hornest operation is our business philosophy. YuanMing always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product. Also, YuanMing is not only a manufacturer for UV LEDs and modules, but also a lighting application solution provider for all your UV LED needs, we can be your lighting consultant whenever you need.
Q5. If i order in bulk quantities will there be any discount?
A: Yes in case you are ready to order in bulk or do customization we can give you wholesale prices.

Application of UV LED Module

UV LED Module are mainly used in printing curing, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LEDs have broad market application prospects.

180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
