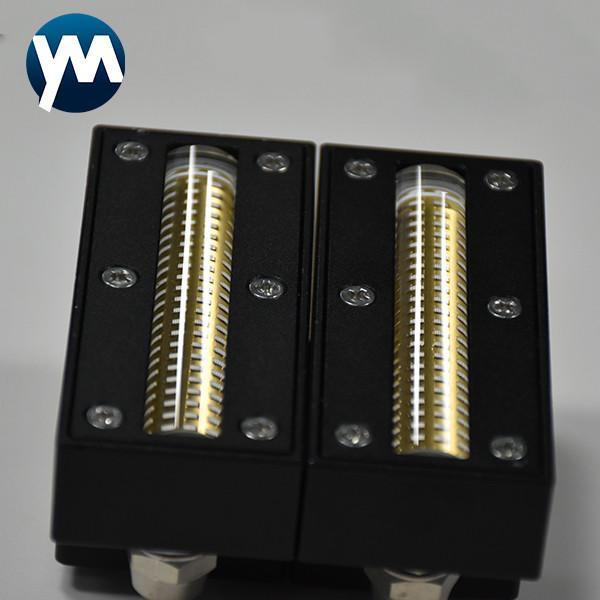

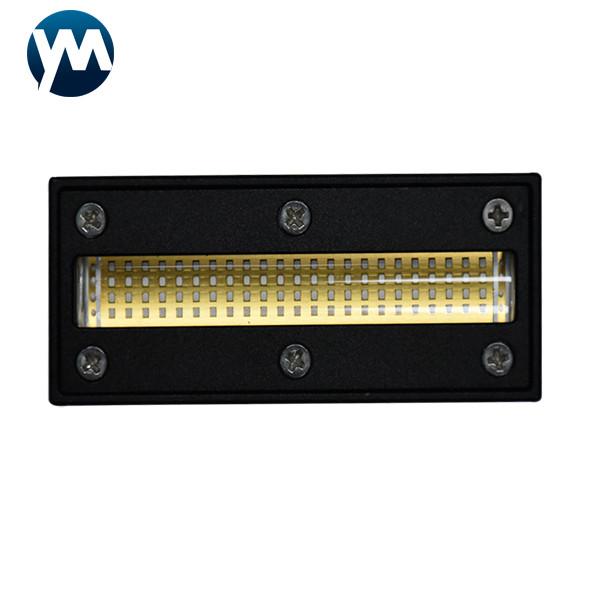

UV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV Lamp
UV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV Lamp
UV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV Lamp
UV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV Lamp
Specifications
Brand Name :
YM
Model Number :
UV LED Curing Systems 200W
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
10-15 Work days
Packaging Details :
Carton
Product Name :
UV LED Curing Systems 200W
Power :
200W
Size :
85mm*36mm
Luminous Size :
75mm*11mm
Chip Material :
COB Epileds
Cooling scheme :
Water cooling
Wavelength :
365nm,385nm,395nm,405nm
Warranty :
2 Years
Description

UV LED Curing Systems 200W High power curing lamp ultraviolet lamps chiller uv lamp

UV LED Curing Systems Product Description
The item may be administered along with either Water-cooling or even wind-cooling strategy.
Different various other handling measurement as well as likewise existing might be actually
developed according your requirment, inluding mix.
wavelenth unique wavelenth as well as treating dimension.
Greater functionality and also lowered consumption.
Apply in a number of printing industries, coating, in addition to sticky.
FAQ
Q1. Are you a manufacturing facility?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light.
Q4. Do you have any MOQ limit for led light order?
No! One is also acceptable.
Q5. What is your usual payment terms for orders?
A. T/T. Others payment terms also is ok.
Q6. How long does it take for my order to be shipped?
A. It usually takes 3-7 days, relying on the volume.
Item UV LED Curing Systems 200W
Power 200w
Color UV
Diode Brand DC, LG
Diode type COB smd type
Size 85mm*36mm
Luminous Size 75mm*11mm
Chip Material Epileds
Wavelength 365nm,385nm,395nm,405nm
Cooling scheme Water cooling
Application Apply in various printing industries, painting, and glue.
Lifespan (hours) 20000-30000
Warranty 1 years
Place of Origin Guangdong, China
UV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV LampUV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV LampUV LED Curing Systems 200W High Power Curing Lamp Ultraviolet Lamps Chiller UV Lamp
Issues requiring focus
Warm tips, in order to make our products play the best performance and reduce customer failure
in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED should take measures
to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature, and the positive and negative
polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens..
5) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure
adequate radiator area.

Thank you for your attention
