Specifications
Brand Name :
YM
Model Number :
UV LED Module 6015
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
UV LED Module 10364
Power :
45W
Module Size :
60mm*15mm*2.0mm
Luminous Size :
60mm*3.5mm
Voltage :
51-57V
Current :
500-700MA
LED Chips :
Optional(LG/Epileds/ Seoul)
Encapsulation process :
High temperature quartz lens package module
View Angle of the Lens :
60, 90, 120 degree
Warranty :
1-2 Years
Description

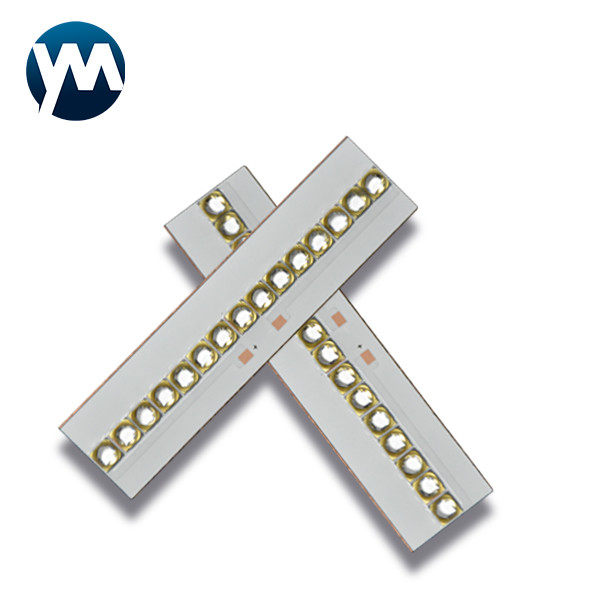

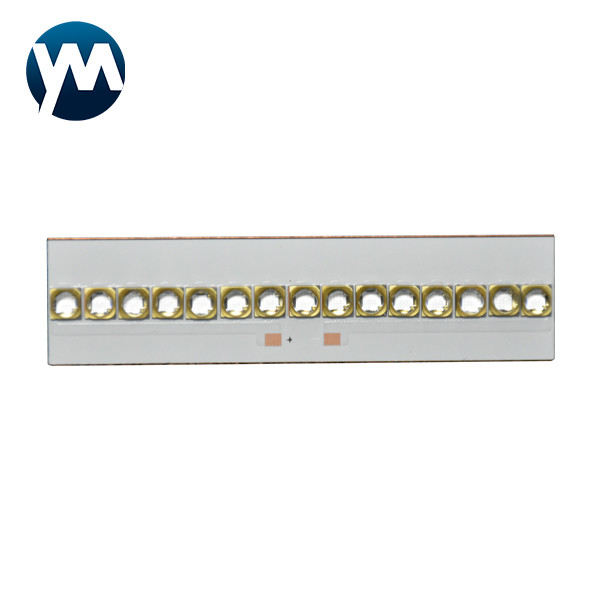

UV LED Module 45W High-power line light source seamless splicing Curing module

UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 6015
Power 45W
Color UV
Number of lamp beads 15 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 90, 120 degree

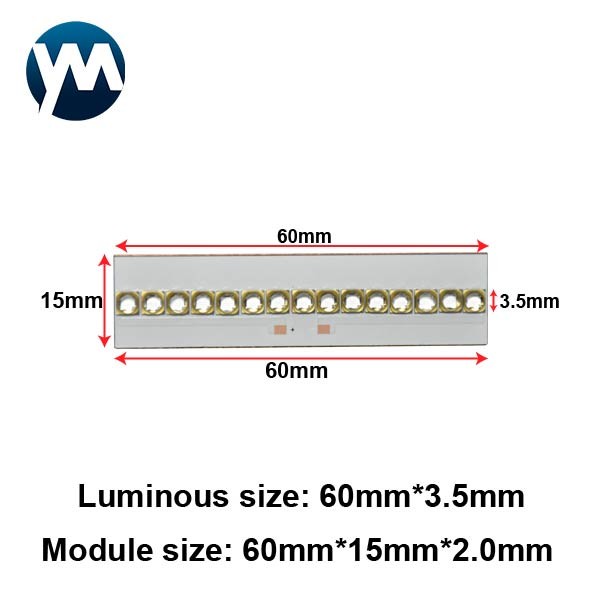

Module size 60mm*15mm*2.0mm
Luminous Size 60mm*3.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 51-57V
Current 500-700MA
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

UV LED Module 45W High Power Line Light Source Seamless Splicing Curing ModuleUV LED Module 45W High Power Line Light Source Seamless Splicing Curing ModuleUV LED Module 45W High Power Line Light Source Seamless Splicing Curing Module

Why Choose Us

1) Good Price
We can provide the manufacturer's direct selling price and give you the best discount.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) After-sale Service
We provide high-quality and timely pre-sales consultation and after-sales service.

Any questions about UV LED will be answered by professional engineers within 12 hours.

FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.

Q3. How to process the order?
A: 1. Let us know your requirement.
2. We make a quotation and provide our advice.
3. We will make a PI after you confirm the quotation.
4. You make the payment after check the details.
5. We arrange the delivery asap.

Q4. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q5. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.

2) When welding, attention should be paid to the welding time and temperature,

and the positive and negative polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
