UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing
Specifications
Brand Name :
YM
Model Number :
UV LED Module 6037
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
UV LED Module 6037
Power :
120W

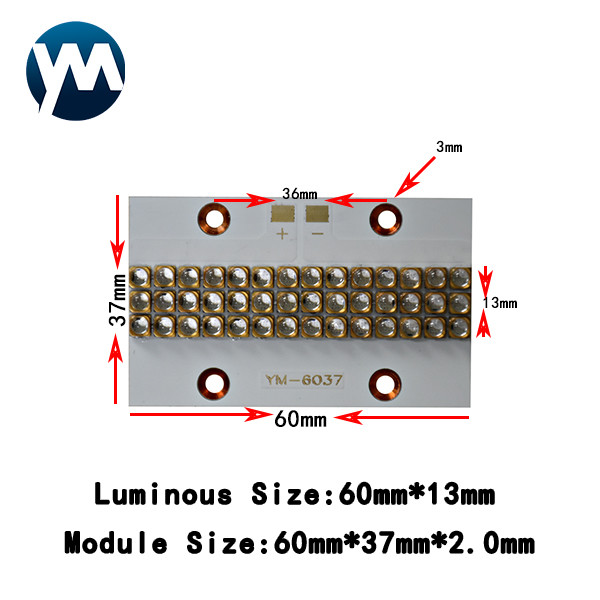

Module Size :
60mm*37mm*2.0mm
Luminous Size :
60mm*13mm
Voltage :
47-53V
Current :
1.5-2.1A
LED Chips :
Optional(LG/Epileds/ Seoul)
Encapsulation process :
2.0mm High temperature quartz lens package
View Angle of the Lens :
60,120 degree
Warranty :
2 Years
Description

UV LED Module 120w uv led 3535 chip quartz lens for uv printer uv ink curing

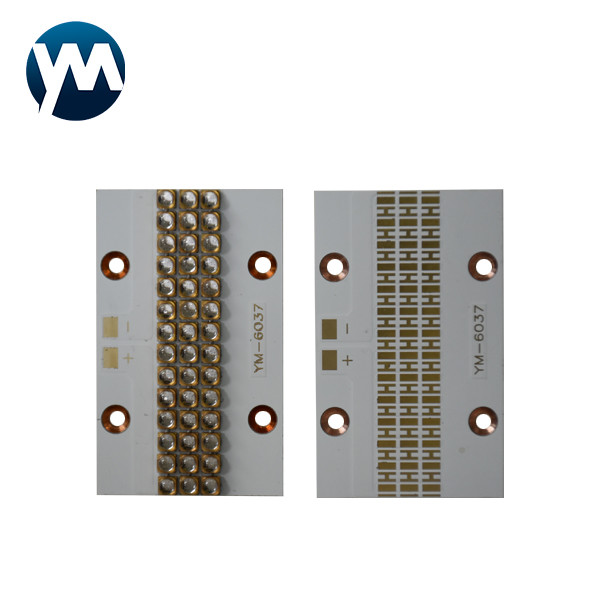

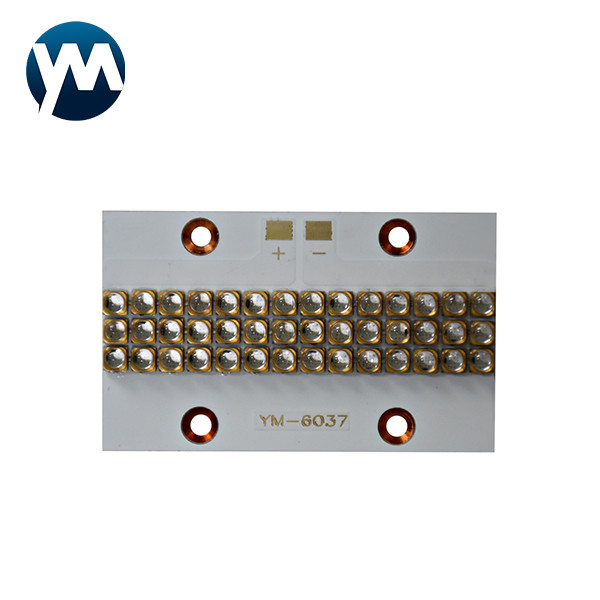

UV LED Module Product Description
The UV LED Module can be applied with either Water-cooling or wind-cooling method.
It is recommended to use water cooling for heat dissipation, which can better protect the life of the lamp beads.
Various powers, sizes, and circuits can be customized according to your requirements, including mixed bands.
Apply in various UV printing industries, painting, UV lnk,and UV glue.

Product Name

UV LED Module 3535

Power

120w

Color

UV
Number of lamp beads 42 pcs

Diode type

3535 smd

Lens Material of Diode

Silica gel or quartz

View Angle of the Lens

60, 120 degree

Module size

 60mm*37mm*2.0mm
Luminous Size 60mm*13mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

47-53V

Current

1.5-2.1A

Chip Material

 LG,Seoul,Epileds

Encapsulation process

2.0mm High temperature quartz lens package

Lifespan (hours)

20000-30000

Warranty

2 years
Application Apply in various printing industries, painting, and glue.

Place of Origin

Shenzhen, Guangdong, China

UV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink CuringUV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink CuringUV LED Module 120w UV LED 3535 Chip Quartz Lens For UV Printer UV Ink Curing

FAQ
Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.
Q2: What is the MOQ?
A: Our MOQ is 1 unit. We can do OEM/ODM if you need.
Q3. What is your main products?
A. UV LED Lamp Bead,UV LED Module,UV LED Single Light,UV LED curing equipment.
Q4: How many years of warranty of your products?
A: We offer 2 year warranty time. If there is any problem during the warranty time, please contact us
and we will change or repair them for you.
Q5. How long does it take for my order to be shipped?
A. It usually takes 3-7 days, depending on the quantity.
Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
4) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,Any questions about UV LED will
be answered by a professional engineer in 12 hours.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
