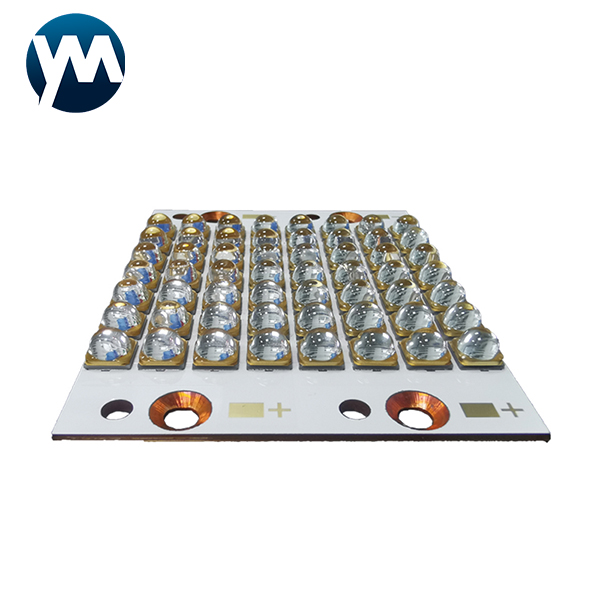

UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp
Specifications
Brand Name :
YM
Model Number :
UV LED Module 6079
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
10-15 work days
Packaging Details :
Carton
Product Name: :
UV LED Module
Power :
560W

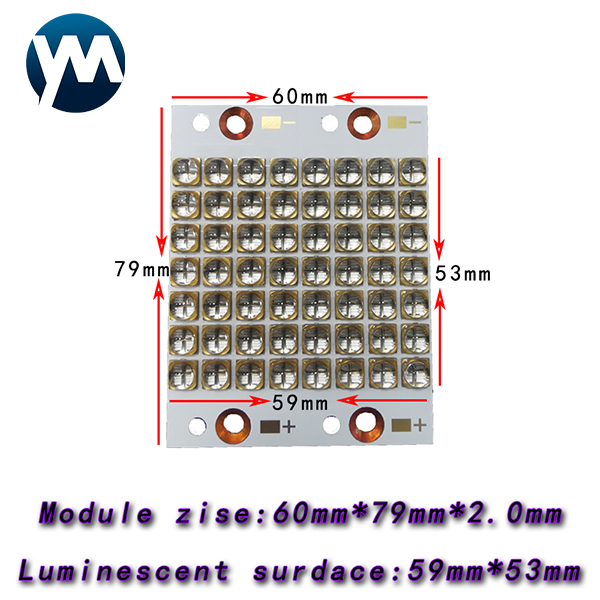

Module Size :
60mm*79mm*2.0mm
Luminous Size :
59mm*53mm
Voltage :
45-53V *2
Current :
4-6A *2
LED Chips :
Optional(LG/Epileds/ Seoul)
Encapsulation process :
2.0mm High temperature quartz lens package
View Angle of the Lens :
60,90,120 degree
Warranty :
2 Years
Description

UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp

UV LED Module Product Description
The product can be applied with either Water-cooling or wind-cooling method.
Various other treating dimension as well as current could be created according
your requirment, inluding mix
High efficiency and low consumption.Apply in various printing industries, painting, and glue.

FAQ

Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.

Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.

Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light; uv curing lamp.

Q4. What is your usual payment terms for orders?
A. T/T. Others payment terms also is ok.

Item

High Power UV LED Module

Power

560w

Color

UV

Diode Brand

DC, LG

Diode type

6565,6868 smd type

Lens Material of Diode

Silica gel or quartz

View Angle of the Lens

60,90,120 degree

Module size

 60mm*79mm*2.0mm
Luminous Size 59mm*53mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

45-53V*2

Current

4-6A*2

Chip Material

 LG,Seoul,Epileds

Encapsulation process

2.0mm High temperature quartz lens package

Lifespan (hours)

20000-30000

Warranty

2 years
Application Apply in various printing industries, painting, and glue.

Place of Origin

Guangdong, China

UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lampUV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lampUV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lampUV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp

Matters needing attention
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
4) During the whole process of use, all people who are in direct contact with UVLED should take
measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode
directly with their hands.
5) When welding, attention should be paid to the welding time and temperature, and the positive
and negative polarities should be distinguished.
6) Electrical parameters such as current and voltage should not exceed the rated values.
Thank you for your attention
