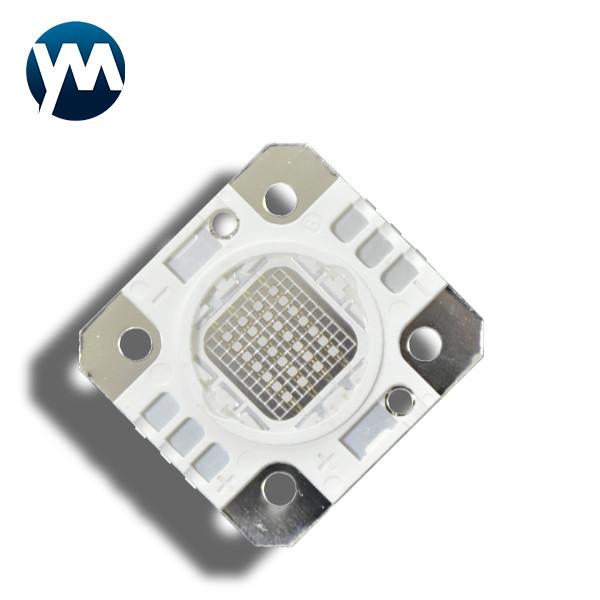

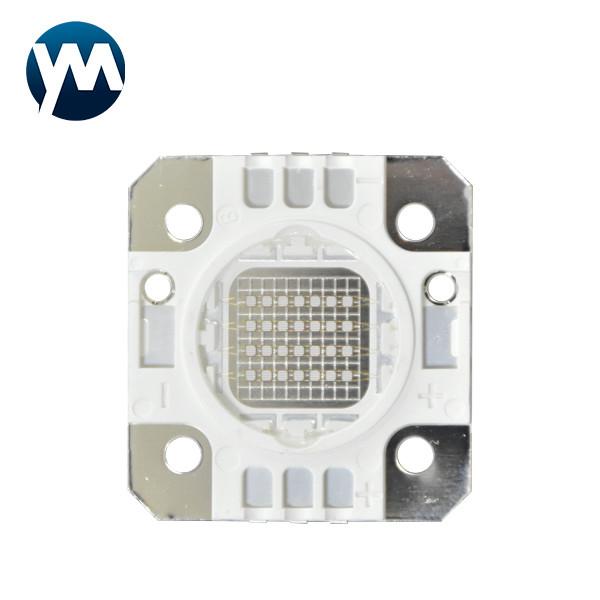

UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp
Specifications
Brand Name :
YM
Model Number :
UV LED COB Module 3634
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7-10 work days
Packaging Details :
Carton
Product Name :
UV LED COB Module3634
Power :
72W
Module Size :
36mm*34mm
Luminous Size :
20mm*20mm
Voltage :
24V
Current :
3A
LED Chips :
Epileds
Encapsulation process :
High temperature quartz lens package COB module
View Angle of the Lens :
180 degree
Warranty :
2 Years
Description

UV LED COB Module 72W UV Curing Flashlight module Fast curing uv led lamp

Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV LED COB Module 3634
Power 72W
Color UV
Number of lamp beads 28 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 180 degree
Module size 36mm*34mm
Luminous Size 20mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 24V
Current 3A
Chip Material Epileds
Encapsulation process High temperature quartz lens package COB Module
Module material 1.5mm COB Aluminum plate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

UV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED LampUV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED LampUV LED COB Module 72W UV Curing Flashlight Module Fast Curing UV LED Lamp

Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.
4) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.


FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.

Please pay special attention
To make sure that the products works at there best and to reduce any errors of usage please pay attention to the following tips.
1) During operation, Users handing the UV LED products should take precautions to prevent electric shocks and beware of the shock hazards.
2) While using the products make sure to keep in check the time of operation and temprature. Please carefully distinguish between the postive and negative poles of the product.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
