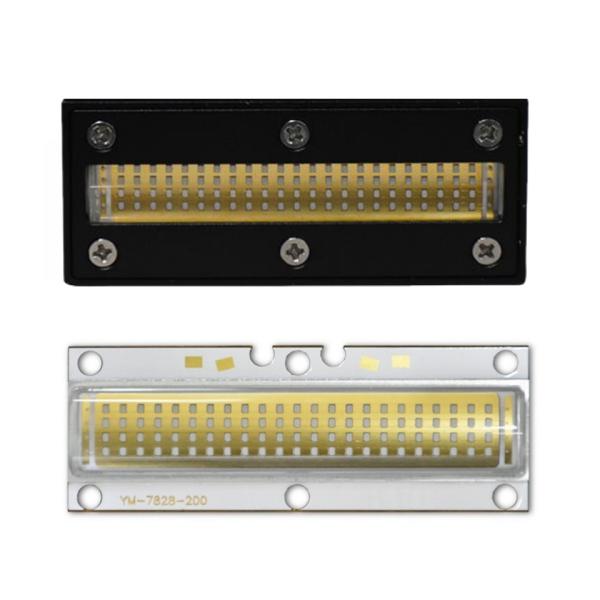

200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling
Specifications
Brand Name :
YM
Model Number :
UV LED Module 200W 200W
Certification :
High-tech Enterprise Certificate
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
10-15 Work days
Packaging Details :
Carton
Product Name :
UV LED Module 200W

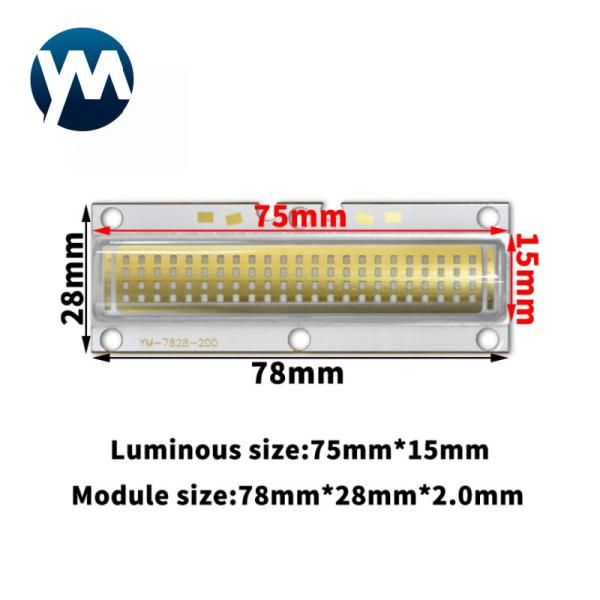

Size :
78mm*28mm*2.0mm
Luminous Size :
75mm*15mm
Cooling scheme :
Water cooling
Power :
200W
Voltage :
78-87V
Current :
2-2.8A
Description

Application

UV lamps are widely used in printing, plastic, wood, footwear, glass, handicraft polishing, painting and other fields.

1. In terms of spraying: ordinary phone case spraying, cosmetic case spraying, Plastic spraying of MP3 small

household appliance shells and other materials

2. Printing: Screen printing, offset printing, 5-color printing, etc. Use UV curing lamps to dry UV ink.

3. In the footwear industry, it is the use of ultraviolet radiation to illuminate the material on the sole of the shoe,

causing a chemical reaction and creating a good affinity between the adhesive and the sole and upper.

4. In terms of wood industry, it is used for curing UV paint coatings on the surface. Due to the excellent performance

of UV coatings (such as varnish) in various aspects, such as wear resistance, friction resistance, acid and alkali resistance,

weather resistance, etc.

5. Crafts polishing: As long as the surface of handicrafts is processed using UV polishing oil, UV lamps can be used.

Specification

Item UV LED Module 200W
Power 200W
Color UV
LED QTY 92 pcs
Diode type COB smd type
Size 78mm*28mm*2.0mm
Luminous Size 75mm*11mm
Chip Material Epileds
Wavelength 365nm,385nm,395nm,405nm
Cooling scheme Water cooling
Application Apply in various printing industries, painting, and glue.
Lifespan (hours) 15000
Warranty 1 year
Place of Origin Guangdong, China
200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling200W led uv curing flatbed 395nm For Printing Machine Chip Water Cooling

why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
