Automatic Flatbed T Shirt Printing Machine High Resolution 6 Colors Channels
Automatic Flatbed T Shirt Printing Machine High Resolution 6 Colors Channels
Automatic Flatbed T Shirt Printing Machine High Resolution 6 Colors Channels
Automatic Flatbed T Shirt Printing Machine High Resolution 6 Colors Channels
Specifications
Brand Name :
DOMSEM
Model Number :
DS-UVA3
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, paypal,
Supply Ability :
120 sets per month
Delivery Time :
3-18 days
Packaging Details :
Wooden packing: 86*56*74 cm, 75kg
Product name :
A3 UV Led Printer
Head :
From Epson 1390
Head quantity :
1pc
Color :
6 colors channels (CMYK+WW)
UV heat :
UV light heat system
Cooling system :
Water cooling + Fan cooling system
Description

New Automatic A3 UV Led Printer For Phone Case T-Shirt Wood Glass PrintingC

Parameters:

A2850UV Automatic Printer

Printing method:

uv inkjet printing

Certification

CE, RoHS

Color:

C M Y K +W W

Speed:

Unidirection/ Bidirection

Printing distance:

1mm~3mm(1mm optimum)

Printing size:

A3 420*300mm

Printing height

Adjustment automatic

Cooling system

Water cooling + Fan cooling system

Item height:

Fixed height limit

Head

From Epson 1390

Printing interface:

USB

Ink

UV soft ink

Net Weight:

59kg

Accessories

1-set A3 UV Printer Machine (AC100-240V)

5-bottles UV ink (5 colors included, 250ml/bottle)

3-pcs USB memory stickers (incluidng RIP print software and Teaching Video of installation and operation)

1-set tools for installing.

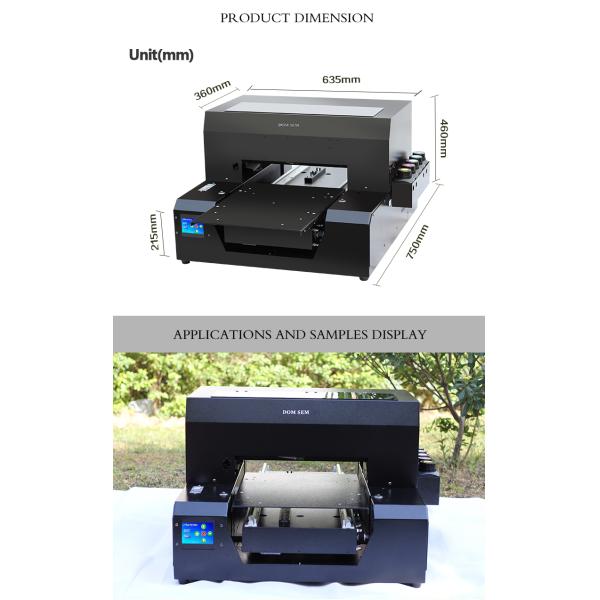

Packing size

L980mm*W725mm*H600mm

Ink curing:

UV machine uses water cooling circulatory system to ensure low

temperature operation state can extend the life of UV lamp ,

and to increase light intensity so that the light solid will better

Product Application

A3 UV Led Printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer that created by DOMSEM and was built with industrial configuration as thicken aluminum profile, water cyculation cooling system. Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal (aluminum, copper etc), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.

Main Features

1- High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.

2- High Resolution Printing:

a. High color density, Wide color gamut, Instant drying.

b. Excellent adhesion to both coated and uncoated media.

c. Superior scratch and alcohol resistance. 3 years outdoor durability.

3- Maintenance simplified:

a. Accessible electronic, Components in on integrated compartment

b. Easily accessible ink system from maintenance.

c. Easy to access refillable ink containers.
