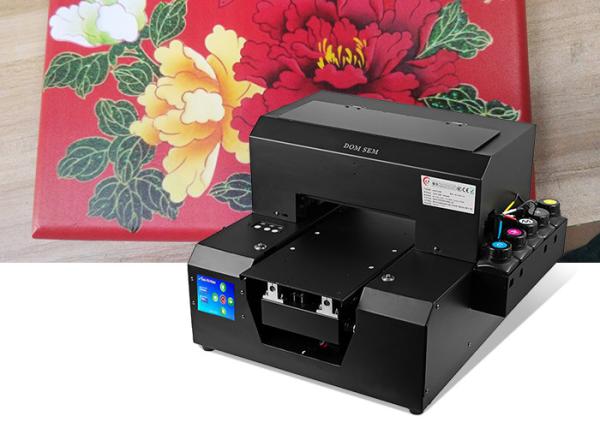

LED UV DTG Printing Machine Direct To Wood Printer For Acrylic Board Tile
LED UV DTG Printing Machine Direct To Wood Printer For Acrylic Board Tile
Specifications
Brand Name :
DOMSEM
Model Number :
DS-UVA4
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
200 sets / month
Delivery Time :
3-15 working days
Packaging Details :
Wooden packing, 65*56*47cm, Gross weight: 42kg
Product name :
DIY LED UV Flatbed Printer
Resolution :
2880*1440dpi /1440*1440dpi
Speed :
Unidirection / Bidirection
Software :
AcroRIP9.03
Packing size :
Wooden packing: 65*56*47cm
Gross weight :
42kg
Description

DIY LED UV Flatbed Printer For Acrylic Board Tile Wood Printing Machine

Product Application

A4 UV flatbed printer is the ideal solution for DIY Custom printing on the products, which is a multi-functional LED UV flatbed printer that created by DOMSEM and was built with industrial configuration as thicken aluminum profile, water cyculation cooling system. Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like T shirt, garment, cloth, phone cases, metal (aluminum, copper etc), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.

Specifications DIY LED UV Flatbed Printer
Print head from Epson L800
Max.Media thickness 10cm
Max.Media weight 10kg
Printing interface USB 2.0
Printing software AcroRIP8.1 /AcroRip 9.03
Computer System All windows system
Ink type Rigid UV curing ink, soft UV curing ink
Ink certification SGS certification
Ink Color 6 Colors (CMYK+WW)
Ink System Continuous ink supply system
Dry system UV LED instant dry system
UV LED wave length 395nm
UV LED lifespan 50000hours
Printing Precision less than 0.1mm
Cool system Water circulation + fan
Print Head Height Smart sensor Adjustment
Control Automatic control panel
Printer Dimension L635*W500*H400mm
Net weight 32kg
Gross weight 42kg
Packing size L56*W65*H47cm
Power consumption 100Watt
Work Voltage AC100-240V 50-60hZ

Main Features

1-Easy Operation: Unique lateral loading platform design, Control on Demand system.

3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.

5-Maintenance simplified:

a. Accessible electronic, Components in on integrated compartment

b. Easily accessible ink system from maintenance.

c. Easy to access refillable ink containers.

LED UV DTG Printing Machine Direct To Wood Printer For Acrylic Board Tile
