Main parameters
§ 1. Easy white printing with easy operation.
§ 2.3D textured printing result onto any substrate from transparent glass/acrylic to dark ceramics. Advanced RIP printing. Compatible with JPEG, PDF, EPS etc format directly.
§ 3. Photo printing quality up to 5760*2880DPI.
§ 4. Wide applications from Signage, Name badges and photo IDS, Plaques and awards and Customized promotional items to much more.
§ 5. Affordable cost for UV printers.
§ 6. All applications working sizes. 280*400mm.
§ 7. Refillable ink cartridges. We apply the continuous ink supply systems and we can just refill the inks when necessary.
§ 8. Long durability after printing. Water/sunshine proof etc

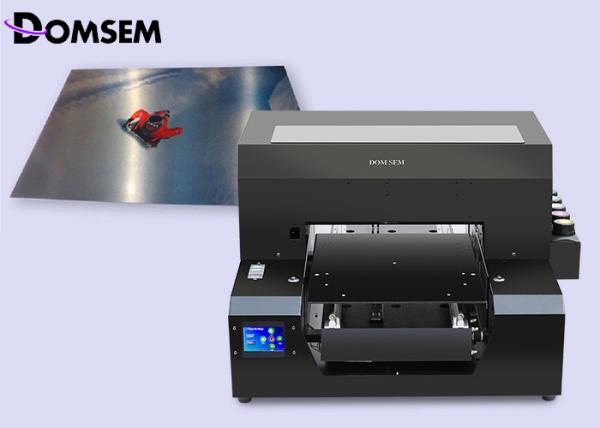

Specifications | A3 Inkjet Flatbed UV printer |
Print head | Original from Epson 1390 |
Print direction | Unidirection/ Bidirection |
Print Size | A3 420*300mm |
Print Resolution | 2880*1440dpi/ 1440*1440dpi |
Certification | CE, RoHS |
Print Color | 6 colors (CMYK+WW) |
Max.Media thickness | 10cm |
Max.Media weight | 10kg |
Printing interface | USB 2.0 |
Printing software | AcroRip9.0 |
Computer System | All windows system |
Ink type | Rigid UV curing ink, soft UV curing ink |
Ink certification | SGS certification |
Ink Color | 6 Colors (CMYK+WW) |
Ink System | Continuous ink supply system |
Dry system | UV LED instant system |
UV LED wave length | 395nm |
UV LED lifespan | 50000hours |
Printing Precision | small then 0.1mm |
Cool system | Water circulation cooling system |
Print Head Height | Automatic Adjustment |
Control | LCD touch screen control panel |
Printer Dimension | L56*W50*H40cm |
Power consumption | 150Watt |
1 . it can use uv Hard/Soft ink(CMYK) + white ink, Or Eco-solvent ink (CMYK LC LM)And Textile ink.
2. the material include acrylic, crystal, leather, plastic, mental, aluminum sheet, PVC, ABS, stone, ceramic tile, KT board, wooden board,foam board, Fresh Flower,Textile,Pure Cotton/Fabric ,etc.,any flat surface can print,even within 3mm curve surface is available.
3. Direct printing onto DARK and light materials.The printing is drying as well as printing and you get ready and perfect products immediately after printing.
4. Photo printing quality. Equipped with for EP printer head R1390, the UV A3 direct printing system realize the real photo printing quality with 2880*1440DPI.
5. Fast production. A3 size printing needs 8minutes with highest resolution.
6. Long durability after printing. Applied with the USA UV LED lamp and UV ink technology, UV direct printing system is full of best combination between the UV LED lamp light length and ink characteristics.
7. Easy operation. UV LED direct printing system is maximizing the advantage of printers. And the operation is just like official printer.
