10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
Specifications
Brand Name :
Maxwave
Model Number :
MW-JPT30W
Certification :
CE FCC SGS
Place of Origin :
Hebei, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
22000/Per Year
Delivery Time :
5-8 working days
Packaging Details :
Wooden Case
Graphic Format :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cooling Mode :
Air Cooling
Control Software: :
Windows CE Embedbed
Core Components :
PLC, optical maser
Laser source :
MAX/RAYCUS
Working voltage: :
AC110v/220V 50/60 Hz
Description

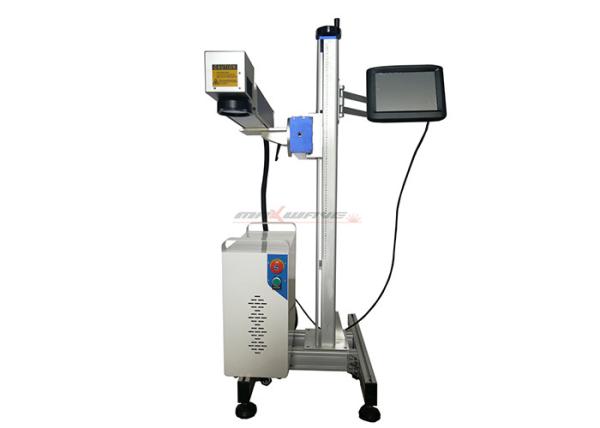

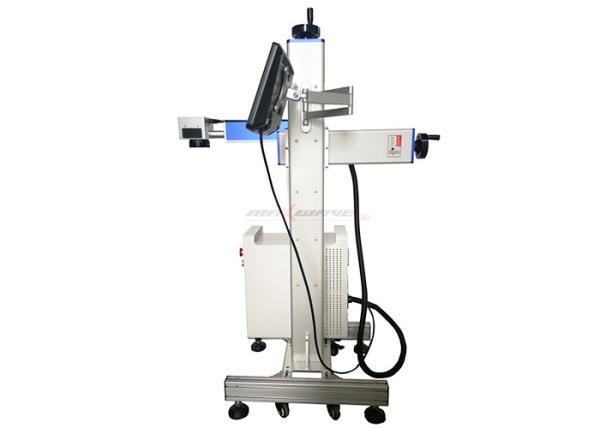

10.2 Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver

UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate
molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be
separated from the materialso that the way they work does not produce any heat. This is very different from traditional fiber and
carbon dioxide laser marking machines.

Applications:

Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, constructionmaterials,
special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications
equipment, LCD glass.

Fly UV Laser Marking Machine Specification
Name
Description
Remark
Laser Gun
Solid-state UVLaser
JPT/GAIN
Scanning Galvanometer
Professional Digital Scanning Galvanometerwith high speed motor
High Speed Motor
Focus System
Two RedLight with accurate position
Two Red Light
Indication System
Inner Outline Indication
Red Outline Indication
Cooling System
External Water Cooling
Water cooling
Controller Card
Integrated Industry Touch Screen
IPS-F6.0 Fly marking system
10.2 Inch Touch Screen for Fly Marking

Fly Laser Marking Machine Technical Parameter
Model
Laser Power
3W
Laser Wavelength
355nm
Laser Frequency
10K HZ-100KHZ
Linear Speed
8000mm/s max
Marking Size
110*110mm (other size available)
Min Font Height
0.1 MM
Min Linewidth
0.01 MM
Repetition Accuracy
±0.02 MM
Marking Depth
≤5 MM (Depend on the material)
Overall Power
≤2000W
Overall Dimension
780*600*1450MM
Weight
Around 87 KG
Power Supply
220V/50HZ/5A/1P
Cooling System
External cooling system ( water tank)
Operation System
IPS-F6.0 Professional marking software
Control Interface
Standard USB Interface
File Format Support
Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and
databases. Support most language and all type input.
Work Environments
Temperature:10-40℃,Humidity:10%-90% No Condensation

Printing Samples:

10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver

10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver

10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver

10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
10.2Inch Touch Screen CNC Laser Machines PVC PIPE UV Laser Engraver
