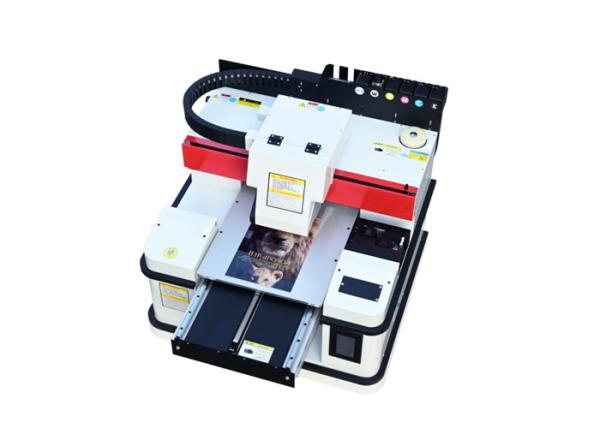

Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
Specifications
Brand Name :
Maxwave
Model Number :
MW-TP100A
Certification :
CE certification
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
19000/Per Year
Delivery Time :
5-8 working days
Packaging Details :
Wooden Case
Print speed :
6-12sqm/h
Resolution :
720/1440/2880dpi
Ink :
UV ink
Usage :
Card Printer, Label Printer, phone case printer
Core Components :
Motor, PLC, Circuit board
Description

Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink​

UV Flatbed Printer Price Epson Printheads Mini Size A4 UV Printer Phone Case Printer

Parameter

Model No.
MW-300C
MW-600
Printhead
1xDX8
1xDX7
Min Ink Drop Size
< 1.5 PL
Printhead Height
Max 20cm
Height Adjust
Electronic
Media
Size

30x50cm, A3 Size (12x20 Inches)
40x60cm, A2 Size, (15x24 Inches)
Types
Phone Case, Pen, Golf, USB Disk, Lighters, CD, PVC Card, Photo Paper, Leather Bag,Bottle,etc
Speed
3 minutes for A3 size
6 minutes for A2 size
Ink
Type
UV Ink
Color
CMYK // CMYK,LC,LM // CMYK, White
Capacity
500 ML per main tank of each color, With lack of ink alarm,White Ink Circulation
Dry System
UV LED light system
Ink Consumption
15-20 ml / squre meter
Print Direction
Uni-direction or Bi-direction Available
Interface
USB 3.0
Rip Software
MainTop (Standard) / PhotoPrint (Optional) / Onyx(optional)
PC Operation System
Windows 7/XP/10
Power Supply
50/60Hz,110V/ 220V
Size
Machine
L670mm W565mm H635mm / 90KG
L800mm×W840mm×H640mm/120KG
Packing
L745mm W745mm H730mm / 100KG
L890mm W930mm H750mm / 140KG

Main features

1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced high quality components in pneumatic parts, electric parts and operation parts.
3) Running in a high automatization and intellectualization, no pollution.
4) 3D printing effect, real, realistic, delicate.

Description

UV flat-panel printer, also known as universal flat-panel printer or UV inkjet flatbed printer, breaks through the bottleneck of digital printing technology and reach the level of staring with single page without plate-making and full-color image printing at one time in the true sense. Compared with traditional printing technology, it has many advantages. Maxwave flatedprinter adopts stable platform technology and advanced stepper motor drive mode. It combines infrared meanwhile, laser positioning, water-cooling and air-cooling to meet long-term continuous work requirement. It has a wide print range and can print products within 170mm height. EraSmart UV inkjet printer can be printed with almost unlimited material. For example mobile phone case, stone cameo, acrylic board, wallet, customized steel film, wallpaper, ceramic tile, U disk, CD-ROM, glass, ABS, PVC etc.

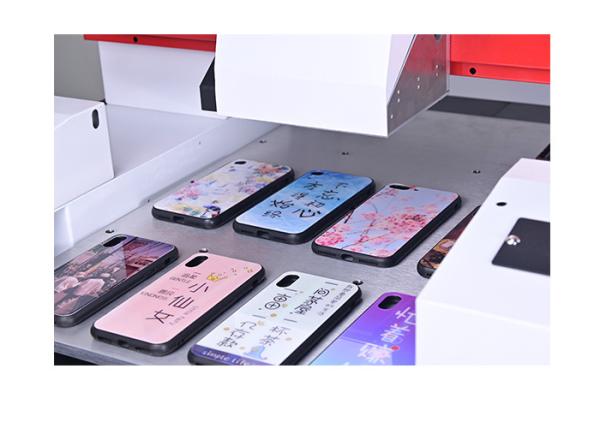

Sample Show

Dry System 12sqm/H Phone Case Picture Printer CMYK Color UV Ink
