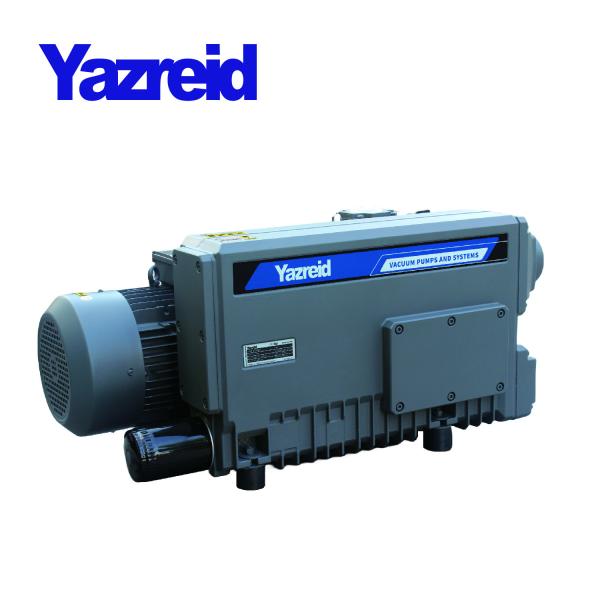

2 Stage Rotary Sliding Vane Vacuum Pump for Lab 60Hz
2 Stage Rotary Sliding Vane Vacuum Pump for Lab 60Hz
Specifications
Brand Name :
Yazreid
Model Number :
YD0200
Place of Origin :
Dongguan
MOQ :
1
Price :
USD1380/Set
Payment Terms :
T/T
Supply Ability :
500 Sets Per Month
Delivery Time :
1-30 days
Packaging Details :
Carton
Application :
Laboratory/Industrial Use
Dimensions :
911mm x 490mm x 417mm
Flow Rate :
200m³/H
Frequency :
50Hz/60Hz
Inlet/Outlet Port Size :
G2”
Model :
YD0200
Oil Capacity :
6L
Power Source :
Electric
Type :
Rotary Vane
Ultimate Vacuum :
0.5mbar
Voltage :
220V/380V
Weight :
147kg
Description

Product Description:

YD series rotary vane vacuum pumps are all single-stage oil-sealed rotary vane vacuum pumps, which are basic equipment for obtaining vacuum.
The suction port of the YD type rotary vane vacuum pump is equipped with a coarse filter with a metal mesh. It can prevent solid foreign dust particles from being sucked into the pump chamber. The oil separator is equipped with an exhaust transition device with efficient oil and gas separation effect. When the pump is stopped, the suction valve built into the suction port isolates the pump from the pumped system to prevent vacuum pump oil from returning to the pumped system. The pump is cooled by air. All YD rotary vane vacuum pumps are driven by directly connected motors through elastic couplings.

Technical Parameters:

Parameter Unit YD0200
Rated Flow 50Hz 200m³/H
Ultimate Pressure mbar 0.5
Voltage 50Hz 380V
Motor Power kW 5.5
Current 50Hz 11.89A
Rotate Speed min 1450
Noise dB(A) 72
Protection Grade IP55
Insulation Grade F
Cooling type Air
Caliber G2”
Oil tank capacity L 6
Weight Kg 147

Application:

Vacuum package machine

Glue dispenser

Chip mounter

SMT machine

Vacuum forming machine

Vacuum defoamation

Vacuum drying

Vacuum precooling machine

Dimensions:

2 Stage Rotary Sliding Vane Vacuum Pump for Lab 60Hz
