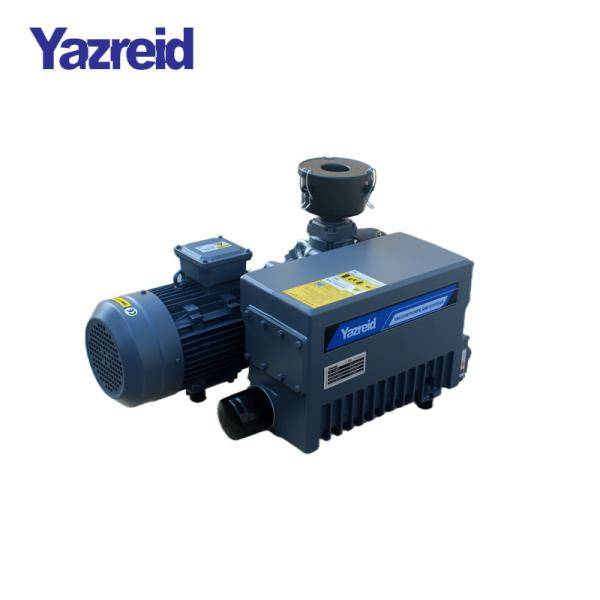

Rotary Vane Two Stage Oil Sealed Pump Rotor Vacuum Pump Customized
Rotary Vane Two Stage Oil Sealed Pump Rotor Vacuum Pump Customized
Specifications
Brand Name :
Yazreid
Model Number :
YD0063
Place of Origin :
Dongguan
MOQ :
1
Price :
USD568/Set
Payment Terms :
T/T
Supply Ability :
500 Sets Per Month
Delivery Time :
1-30 days
Packaging Details :
Carton
Application :
Laboratory/Industrial Use
Dimensions :
654mm x 415mm x 286mm
Flow Rate :
63m³/H
Frequency :
50Hz/60Hz
Inlet/Outlet Port Size :
G1 1/4”
Model :
YD0063
Oil Capacity :
2L
Power Source :
Electric
Type :
Rotary Vane
Ultimate Vacuum :
0.5mbar
Voltage :
220V/380V
Weight :
56kg
Description

Product Description:

YD series vacuum pump is a basic vacuum obtaining equipment. The main features are single-stage compression, three-piece rotating blade structure, and the use of special vacuum pump oil as the working fluid (lubrication, heat conduction, and cleaning of the working chamber).

YD series vacuum pumps are mainly used in the rough, low and medium vacuum range. It can be used to extract ordinary air or inert gases, as well as small amounts of condensable gases such as water vapor. The operating pressure range of the pump is between atmospheric pressure and the ultimate pressure of the pump.

Technical Parameters:

Parameter Unit YD0063
Rated Flow 50Hz 63m³/H
Ultimate Pressure mbar 0.5
Voltage 50Hz 380V
Motor Power kW 2.2
Current 50Hz 8.6A
Rotate Speed min 1450
Noise dB(A) 68
Protection Grade IP55
Insulation Grade F
Cooling type Air
Caliber G1 1/4”
Oil tank capacity L 2
Weight Kg 56

Application:

Vacuum package machine

Glue dispenser

Chip mounter

SMT machine

Vacuum forming machine

Vacuum defoamation

Vacuum drying

Vacuum precooling machine

Dimensions:

Rotary Vane Two Stage Oil Sealed Pump Rotor Vacuum Pump Customized
