Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
Specifications
Model NO. :
RH0063
Pumping Speed :
63m3/H
Ultimate Pressure :
0.1mbar
Inlet Diameter :
G1 1/4′′
Motor Power :
2.2kw
Noise Level :
63
Oil Volume :
2.0L
Net Weight :
55kg
Brand :
Hokaido
Transport Package :
Carton with Pallet
Specification :
659.7*420*305mm
Trademark :
HOKAIDO
Origin :
Dongguan China
HS Code :
8414100090
Supply Ability :
500/ Month
Description

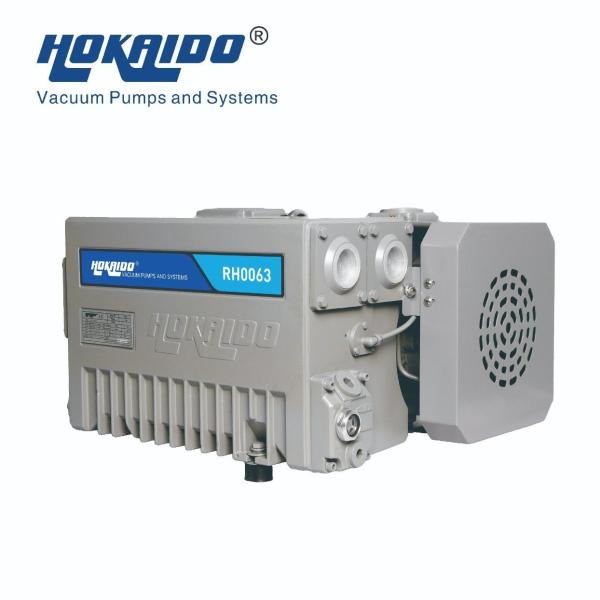

Oil Lubricated Rotary Vane Vacuum Pump (RH063)

Product Description

A typical rotary vacuum pump is comprised of a housing, a rotor and a series of radially moving vanes, which come in dry-running or lubricated versions (the latter are the most commonly used in the majority of industrial applications). The rotor is generally the only continuously moving vane vacuum pump part. There's also a working chamber inside the housing, which is divided into two separate compartments by the rotor and vanes. Many vane vacuum pumps also include an inlet valve as a safety feature.

Rotary vane vacuum pumps are available in single-stage and two-stage versions. The stages refer to the number of times that compression actually occurs. Two-stage pumps are also able to attain a lower pressure than single-stage pumps, due to the fact that gas is only admitted during the high pressure stage.

Rotary vane vacuum pumps are ideally suited for a wide range of low and medium vacuum applications such as general and chemical laboratory, analytics, freeze drying, process engineering and more. A rotary vane pump works via positive displacement, which is when volumes of air or gas are confined within a closed space and are compressed when the space is mechanically reduced.

Product Parameters

Product Model 50/60Hz RH063
Pumping Speed 50Hz 63m³/H
60Hz 76m³/H
Ultimate Pressure mbar 0.1
Inlet Diameter G1 1/4''
Voltage 50Hz 220-240/345-415V
60Hz 220-275/380-480V
Motor Power kW 2.2
Current (A) 50Hz 8.5/4.9
60Hz 9.2/5.3
Rotate Speed r/min 1440/1720
Noise Level dB 63
Oil Volume L 2.0
Net Weight kg 55

Detailed Photos

Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbarFood Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar

Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar

Installation Instructions

Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar

Certifications

Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar

Company Profile

Food Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbarFood Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbarFood Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbarFood Freeze-Drying Oil Sealed Rotary Vane Vacuum Pump With Ultimate Pressure 0.1mbar
