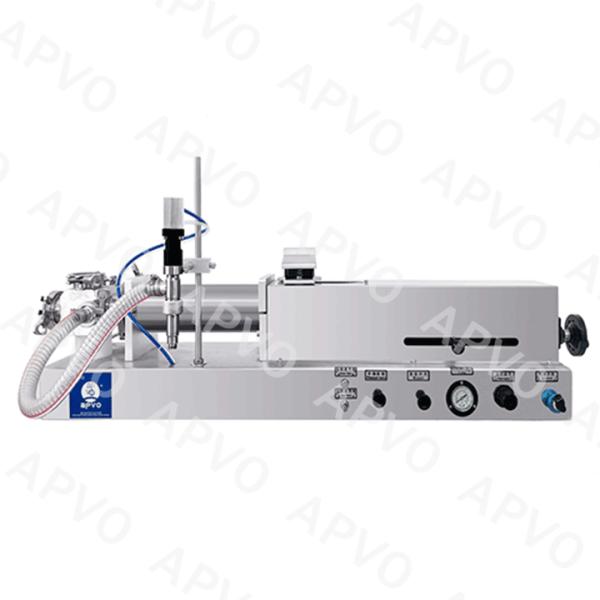

400BPH Semi-automatic Horizontal Filling Machine Tube Cream Cosmetic Filler

Description:

The horizontal filling machine is specially design which can be easily portable. It can be automatically suction the material in case of feeding the hopper all the time.

Manual and automatic switch function optioned. When the machine is in automatic working condition, it will automatically and continuously fill according to the setting speed. When under manual status, it should be controlled by pressing the pedal. If not release the pedal it will turn to automatically and continuously filling.

The cylinder, tee-joint adopt hand cuffs type connection which can be conveniently disassembled and assembled without the need of using any special tools. The machine can be also easily cleaned.

Leakage proof filling system is to drive the closure head when the cylinder move up and down. When the cylinder is down, the closure head will go down, the valves will be opened and the system starts to fill. When the cylinder is up, the closure head will go up the valve will be closed and stop filling, so that the leakage and dripping are prevented.

Feature:

• 1, Simple structure, convenient maintenance, reliable drive. With Self-suction function.
• 2, Import FESTO cylinder and pneumatic components, guarantee the reliability of the machine.
• 3, High measurement accuracy, no drip phenomenon.
• 4, Filling speed, can automatic uninterrupted filling.
• 5, Adopt imported 316L stainless steel materials, inside and outside polishing, conforming to GMP standards.
• 6, Feeding style: Normal gravity type.
• 7, Control mode: Full pneumatic control.

Equipment principles:

• 1, The machine adopts compressed air control drive, so in a particularly suitable for explosion-proof requirements and used in wet conditions, High security.
• 2, Due to the startup control, And adopting mechanical positioning, can be different filling cream liquid products precision is ±0.5%
• 3, Using lead screw, counter, Make filling quantity adjustment accurate, And can directly see the number of the filling quantity.
• 4, If need stop urgently, just press the abrupt stop switch, The piston automatically retreat back to initial bits, filling stop.
• 5, According to the requirements, can adjust it between "manual" and "automatic" filling state.
• 6, Equipment failure rate is extremely low.

FAQ:

Q1 .Q Do you accept a special order?

A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;

Q2.Q: Can you give us a quotation right now?

A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;

Q3.Q: Do you have one in stock?

A:Sorry. We don’t. All products are manufactured according to customer’s requirement;

Q4.Q: Can you make a design for us?

A:Yes We can What we supply is not only product but also solution and design;
