Specifications
Brand Name :
Sino-NSH
Model Number :
VFD
Certification :
CE,ISO,SGS,SASO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
10 working days
Packaging Details :
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Condition :
Brand New
Product Name :
Transformer Oil Purifier
Function :
Dehydration, Degassing, Remove Impurities
Flow Rate :
1800 - 18000 l/h
Filtration Precision :
≤1μm
Water Content :
≤3 PPM
Service :
engineers available to service machinery overseas
Type :
Vacuum Oil Purifier,Transformer Oil Centrifuging System,Mobile
Description

Transformer oil filtration machine to increase and maintain the oil's dielectric strength, Vacuum Dehydration Machine



Vacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformerVacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformer


I. Application of Transformer Oil Filtration Machine

Transformers require filtered and dried oil. During its usage, the insulating oil absorbs moisture and gets polluted by sopping fibers, dirty particles, aging products, and soot. Even unused oil is not clean enough as it may have absorbed moisture from the air or may have got polluted in the barrel it was stored in. The efficiency of the oil as an insulating material is highly reduced as the moisture level increases. Hence, transformer oil filtering is an important process which eliminates solid particles, dissolved gasses, and dissolved water. The electrical properties of the oil can be enhanced by filtering, dehydration, and degassing. Oil Filtering keeps the transformer in good condition and increases its life.

II. Advantages of Transformer Oil Filtration Machine

Here is we have listed some advantages for transformer oil purification:

  • Improved insulation properties of the oil and hence the other media like paper/cellulose insulation
  • Better the insulation of transformer, longer the life of the transformer and lesser the breakdown of the transformer
  • Longer the life of the transformer asset, good returns on investment of the asset
  • Lesser breakdowns and failure of the transformer results in uninterrupted power supply

III. Oil Data Before & After Oil Filtration

PARAMETERS UNITS BEFORE OIL FILTRATION AFTER OIL FILTRATION
Break Down Voltage with 2.5mm Electrode kV 25 ≥75
Moisture Removal ppm 50-100 Up to < 3-5
Particle size (Filter Fineness) Micron Visible < 1
Gas Content % Vol./Vol. <10% < 0.1%


IV.Machine Specification of Transformer Oil Filtration Machine

Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
Vacuum Range Mpa -0.092 ～ -0.099
Working Pressure Mpa ≤0.2
Max Vacuum Range Pa ≤50
Temperature Range ℃ 20 ～ 80
Power Supply 　 380V/3P/50Hz(or as needed)
Working Noise dB(A) ≤72 ≤78
Heating Power Kw 24 30 48 60 90 120 150
Total Power Kw 29 36 56 69 100 132 170
Pipeline Diameter mm DN25 DN32 DN32 DN40 DN40 DN50 DN65
Net Weight Kg 600 800 900 1150 1500 1700 2400
Size length mm 1350 1500 1550 1900 2200 2400 2900
width mm 1100 1200 1250 1400 1500 1600 1800
high mm 1700 1750 1800 1800 1850 1900 2000



V. Available Style of Transformer Oil Filtration Machine

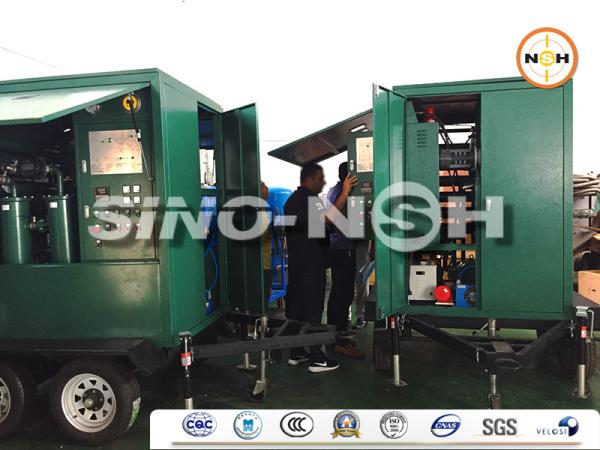

1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
Vacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformerVacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformerVacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformer

Vacuum Transformer Oil Filteration Machine for 30MVA Power Transformers, better the insulation, longer the transformer
About us:
►We are the leading manufacture near 25 years experience and supply best quality and highest cost performance oil purification machines/tratamiento del aceite dieléctrico. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you.
