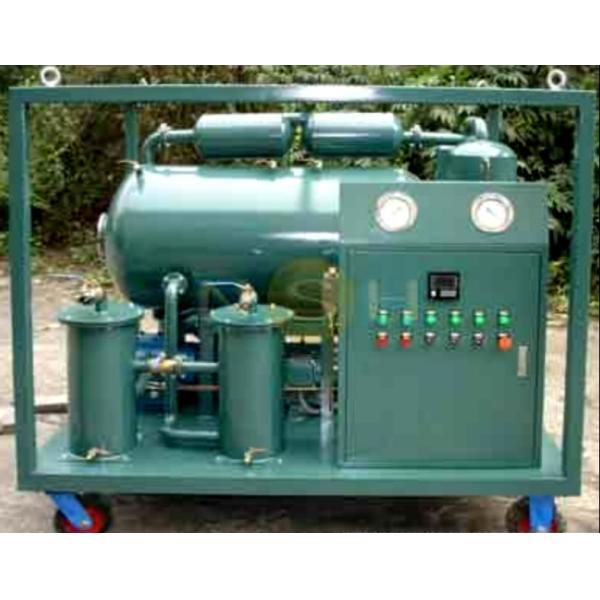

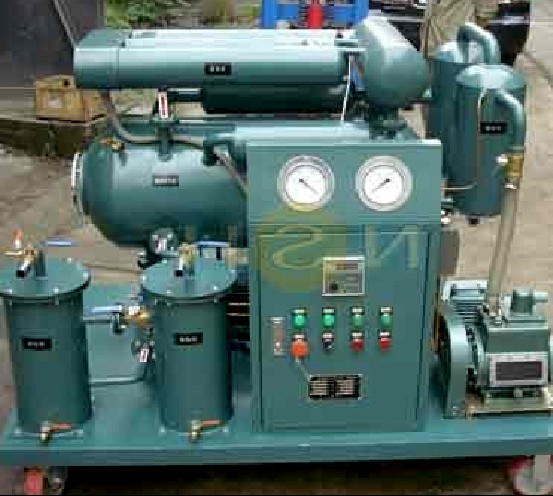

Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm
Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm
Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm
Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm
Specifications
Brand Name :
SINO-NSH
Model Number :
VF-10
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50Sets/M
Delivery Time :
15 Working Days
Packaging Details :
Wooden Case
Product Name :
Transformer Oil Purifier
Materail :
Stainless Steel/Carbon Steel
Application :
Transformer Oil/Low Viscosity Lube Oil
Flow Rate :
600 LPH
Functions :
Dewatering, Degassing, Filtration, Heating, Oil delivery
Power Supply :
Customizable
Weight :
300Kg
Height :
900mm
Type :
Stationary Type with Four Caster Wheels
Filtration Stage :
Three Stage
Description

Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour

Application Scenarios of the Transformer Oil Purification Machine


Insulating oil filtration machine is used in power plants, power stations, power companies, metallurgy, petrochemical, railway, and other industrial and mining enterprises to purify unqualified electrical insulating oil. It can also be used for vacuum pumping and vacuum drying of electrical equipment.

Working Principle of Sino-NSH VF-10 Dielectric Oil Purifier


When the VF is working, the oil enters the primary filter through the inlet under the action of the internal and external pressure difference, and the large particles of impurities are filtered out. After the oil is heated by a multi-stage electric heater, it enters the Sino-NSH special vacuum separation tank. In the separation tank, the mist is first formed, and then the film is formed, so that the contact area in the vacuum is expanded to hundreds of times, and the water in the oil is obtained under the conditions of high heat, high vacuum, large surface, and high pumping speed. Vaporizes quickly and is exhausted by the vacuum system.

Features of Sino-NSH-VF-10

1. Three-dimensional flash evaporation, efficient dehydration, and degassing.

2. Impurity removal technology combining mesh filtration and polymer adsorption.

3. Infrared liquid level automatic control.

4. Trinity interlocking and protection device.

5. This machine can be used for vacuum oiling and vacuum drying of insulating power equipment such as transformers.

6. This machine can be used together with the transformer oil regeneration and decolorization device to add functions such as acid removal, decolorization, free carbon removal, and dielectric loss reduction (insulating oil regeneration oil purification plant).

Main Components of the Sino-NSH VF Model


1. Vacuum Pump
2. Oil Pump
3. Filtration cartridge
4. Vaccum separation chamber
5. Electrical heater

Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm

Parameter

Parameters Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power supply Fully Customizable
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40
Dimensions
(without trailer)		 length, mm 1300 1400 1400 1900 1550
width, mm 900 900 900 1400 1550
height, mm 1300 1300 1300 900 1850
Weight(without trailer), kg 300 330 350 400 650
Processed Oil Spec

Water Content,

ppm

 ≤7

Dielectric Strength,

Kv

 ≥60
Filtration Fineness, um ≤5( or 1-5 as needed )

Gas Content,

%

 ≤0.1

Lightweight Vacuum Transformer Oil Purifier Small Capacity 600 Liters Per Hour 900mm

Our Service

1. 1 years warranty.

2. Provide customers with all technical drawings, materials of equipment purchased, and long-term technical consultation for free.

3. Strictly according to customer needs, provide customers with the best oil treatment solutions, and provide good performance products.

4. Ensure that the equipment is provided with perfect processing technology, perfect testing means, and equipment performance is good.

Retrofitting Options

1. Fully automatic PlC touchable screen

2. Digital water content tester

3. Digital flow meter

4. Breakdown voltage tester

5. Particle count meter

Other Models Purifier Machines

TF Series:
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing, it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas, and particulates, improve the oil properties.
LV Series:
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier that can treat various kinds of lubricant oils.
FV Series:
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistant oil in generator sets.
GER Series:
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, and other used lubrication oil for machinery.
GED series:
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.

Sino-NSH cooperated with SIEMENS in Egypt Programme
