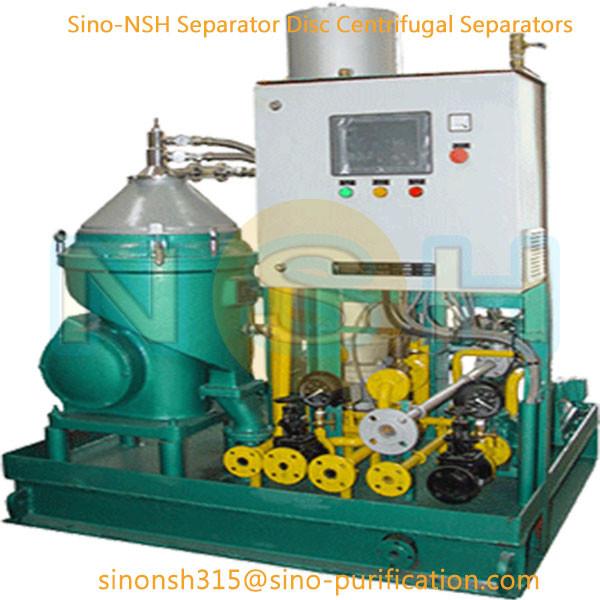

Dehydration CPPA Centrifugal Oil Purifier Disc Centrifugal Separators
Dehydration CPPA Centrifugal Oil Purifier Disc Centrifugal Separators
Specifications
Brand Name :
Sino-NSH
Model Number :
CP
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set
Supply Ability :
50 sets per month
Delivery Time :
10 working days
Packaging Details :
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Application :
insulation oil purifier,lube oil purification,waste oil recylcling
Function :
Dehydration, Degassing, Remove Impurities
Flow Rate :
600-18000L/H
Power Supply :
380V/3P/50Hz(or as needed)
After-sales Service Provided :
engineers available to service machinery overseas
Color :
As your requirement
Product Name :
Insulation Oil Purifier
condition :
New
Description

NSH Separator Disc Centrifugal Separators Fuel Oil, Lubrication Oil CP, CPA, CPPA

The Disc Centrifugal Separator series is especially designed for the oil industry for the purification and recycling of liquid oil. This series is designed to overcome the harmful effects of oil contaminants, water and solid particles from fuel oil, lubricating oil and other mineral oil in marine engine unit and land generator unit of power station so as to reduce wear of diesel engine and other machine, and prolong the serving life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

NSH provides the whole solution for your project.

NSH Separators adopts:

  • Easy-handling control
  • High separation efficiency
  • Unattended operation available
  • Low consumption
  • Economic maintenance cost
  • High speed rotary machine, low vibration, safe and stable

Basic Design Includes

  • Feed pump
  • Centrifugal separator
  • Discharge pump
  • Control panel
  • Primary filter
  • Fine filter
  • Heating system
  • Instrumentation
  • Protection controlling system
  • Base frame with drip pan, lifting lugs and skid caster
  • Heavy duty suitable painting

N O

Capacity (L/h)

Available Heating Mode

(steam as option)

 Available Operation Mode Discharge Mode

PLC

(Option)
Fuel oil

180CST

Fuel oil

380CST

Fuel oil

SAE30/40

Lube oil

 Electric External Steam Manual Auto Manual Auto
1 1600 800 √ * √ √ √
2 4000 2000 √ * √ √ √
3 1700 800 600 800 √ * √ √ √ √ √
4 2200 1000 800 1000 √ * √ √ √ √ √
5 3000 1500 1200 1500 √ * √ √ √ √ √
6 3500 2000 1500 2000 √ * √ √ √ √ √
7 4200 2300 1800 2300 √ * √ √ √ √ √
8 5500 3000 2300 3000 √ * √ √ √ √ √
9 8000 4500 3000 4000 √ * √ √ √ √ √
10 12000 6000 4000 5000 √ * √ √ √ √ √

Dehydration CPPA Centrifugal Oil Purifier Disc Centrifugal Separators

Welcome to email to sinonsh315@sino-purification.com to learn more detailed technical information.


Related Products:

Insulation oil purifier
Transformer oil purification
Lubrication oil filtration,
Hydraulic oil treatment oil recycling,
Engine oil regeneration
Turbine oil purifying,oil purify,
Motor oil recovery,oil reclamation
