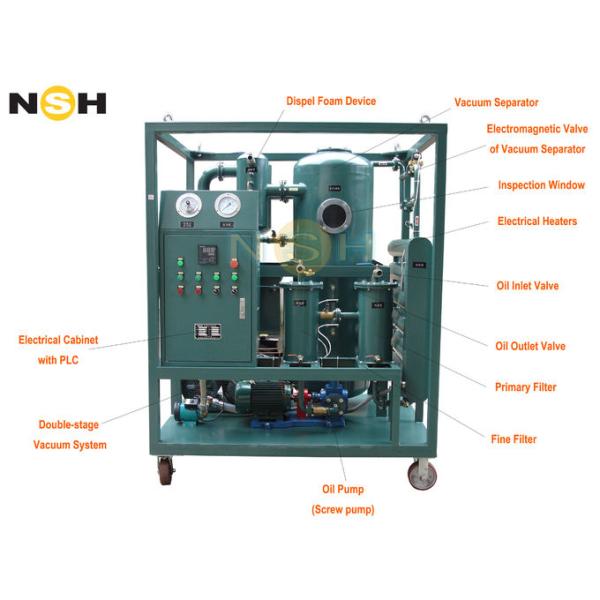

Insulating Oil Double Stage Automatic Vacuum Oil Purifier With Enclosure

Brief introduction to the VFD-A.

The VFD-A double stage automatic vacuum insulation oil purifier machine is also called transformer oil dehydration machine and insulation oil filtration machine, designed to process and maximize dielectric strength in electrical insulating liquids. This will extend not only transformer oil service life, but also transformer service life and reliability. It adopts high vacuum system and high precision filtration system, and has functions of dehydration, degassing, filtration. It is widely used in factory workshops, power transmission and generation station.

What purpose can the oil treatment equipment achieved?

The VFD-A is designed for purifying new or aged transformer oil, cable oil, super high -voltage transformer oil, switch oil, capacitor oil and different insulating oils. Its main purposes are removing dissolved gases and moisture, solid particulate, contamination, etc. The double stages vacuum systems assure the machine has high vacuum degree. Precision system adopts multi-grade oil filtration system, and fine filtration system is achieve to 0.5 to 1 micrometer. This transformer oil purification system can remove free water, soluble water, acid , gas, small and big size particles, increasing the pressure force and quality of oil, improving the breakdown voltage value, making the transformers and electric device running safely.

What is the strength of VFD-A?

1. Equipped with double stage high vacuum system, which ensures fast vacuum pumping speed and high vacuum degree.

2. Advanced liquid automatic controller, pressure automatic-protector and temperature automatic-controlling system which ensure long-term safely and reliable operation.

3. After purification, the technical parameters and performance of transformer oil will be obviously recovered, the oil breakdown voltage can reach up to 70KV in an ideal condition.

4. We provide abundant optional parts for this equipment and each one will be customized as per customer’s requirements. You can get the most suitable oil purifier.

5. The VFD-A utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

6. This model adopts the PLC full automatic system, operate by touch-screen, with dynamic display and can connect computer to operate. All working processes via the CPU.

Customized service:

Covered Steel Shield: To cope with the extreme weather outdoors, and protect the oil filter from the erosion of rain, we can provide you with durable metal enclosure where the operator even can be accommodated.

Roadworthy Trailer: The singledouble-axle is available for convenient moving, which can be hanged by the tow truck.

Tester : Extra onlineoffline tester such as breakdown voltage tester, digital vacuum gauge, digital hygrometer, digital hygrometer and digital flow meter.

Parameter

Our Service

1. 1 years warranty.

2. Provide customers with all technical drawings, materials of equipment purchased and long-term technical consultation for free.

3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.

4. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good.
