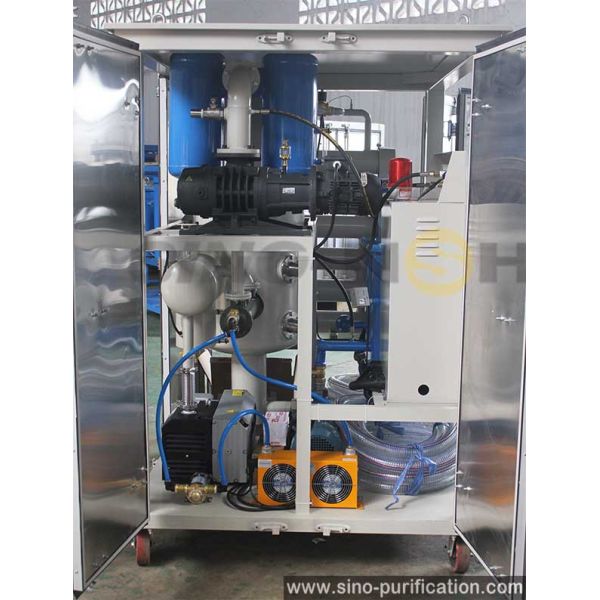

Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier
Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier
Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier
Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
VFD-100
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Power :
69kW
Product Capacity :
6000L/h
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier

Where do Contaminants Come from in Oil?


1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers

Vacuum Transformer Oil Purifier Advantages:


1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. multi-usage

Features:


1. Liquid level auto-controlling system
2. Auto pressure protection system
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.

Dehydration 69kW Aluminum Enclosure Shield Vacuum Transformer Oil Purifier

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950

Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:

Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Capacity, liters/hour 1800 3000 4000 6000 9000 12000 18000
Heating Power, kW 24 30 48 60 90 120 150
Total Power, kW 29 36 56 69 100 132 170
Power supply Fully Customizable
Inlet Diameter, mm 25 32 32 40 40 50 65
Outlet Diameter, mm 25 32 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1350 1500 1550 1900 2200 2400 2900
width, mm 1100 1200 1250 1400 1500 1600 1800
height, mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer), kg 600 800 900 1150 1500 1700 2400
Processed Oil Spec Water Content, ppm ≤5
Dielectric Strength, Kv ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1

Other Optional for Transformer Oil/Insulation Oil:


VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
