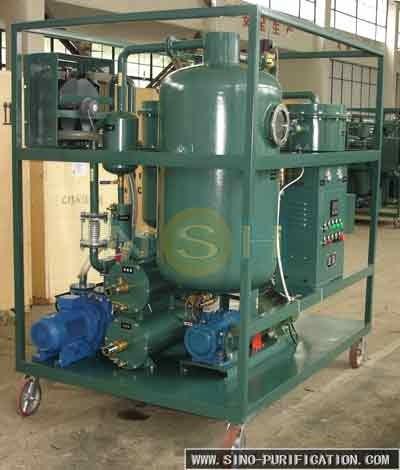

9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier
9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier
9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier
9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
VFD-150
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Power :
100kW
Product Capacity :
9000L/h
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier

What Are Some Contaminants of Oil?


Moisture, Solid particles, Gases and fumes, Asphalt-resinous paraffin deposits, By-products of combustion, Acids and varnishes, Oil sludge, Metallic particles, Minerals and dirt, Unsaturated hydrocarbons, Metal oxides, Poly-aromatic hydrocarbons, Additive remnants, By-products of oil decomposing, Fuel.

100kW 9000L/H Vacuum Transformer Oil Purifier Function:

The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.

What is Oil Purifier ?


Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.

9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier

Our Advantages:


1.We use the import parts with best quality, and at the same time we offer affordable prices to the customer.
2. OEM & ODM service are available.
3. More than 26 years oil purification machine manufacturing experience.
4. Our factory has ISO,CE,SGS,SASO,SONCAP and other certification.
5. We can supply different kinds of oil filtration machine.
6. We can provide customized service.
7. Free training for customer engineers.

Order Tips:


If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.

Other Optional for Transformer Oil/Insulation Oil:


VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950

9000L/H Dehydration Decoloration Double-Stage Vacuum Transformer Oil Purifier
