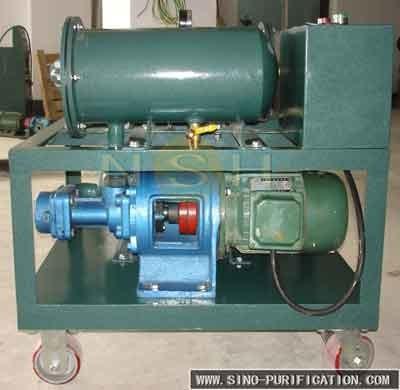

1.5kW Mobile Enclosed Degassing Portable Oil Purifier 6000L/H
1.5kW Mobile Enclosed Degassing Portable Oil Purifier 6000L/H
Specifications
Brand Name :
SINO-NSH
Model Number :
PF-100
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Total Power :
1.5kW
Capacity :
6000L/H
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

1.5kW Mobile Enclosed Degassing Protable Precision Lubrication Oil Purifier

Other Optional Models for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

The Reason of Contamination:


1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.

1.5kW Protable Precision Lubrication Oil Purifier Description:

Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.

1.5kW Protable Precision Lubrication Oil PurifierTechnical Parameters:

Parameter Value
PF-30 PF-50 PF-80 PF-100 PF-125 PF-150 PF-200
Capacity, liters/hour 1800 3000 4800 6000 7500 9000 12000
Total Power, kW 0.75 1.1 1.5 1.5 2.2 2.2 3
Power supply Fully Customizable
Height, m ≥15
Inlet Diameter, mm 25 32 32 40 40 50 50
Outlet Diameter, mm 25 32 32 40 40 50 50
Weight(without trailer), kg 100 115 130 140 165 180 200
Processed Oil Spec Cleaness NAS(1638) ≤6
Filtration Fineness, um ≤5( or 1-5 as needed )

TF Series Turbine Oil Purifier:

NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.
NSH-TF-Z Coalescence and Separation Turbine Oil Purifier
Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.

Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade.

Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation.

FAQ:


1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.

Ps: we accept customization, welcome to inquiry!!!
