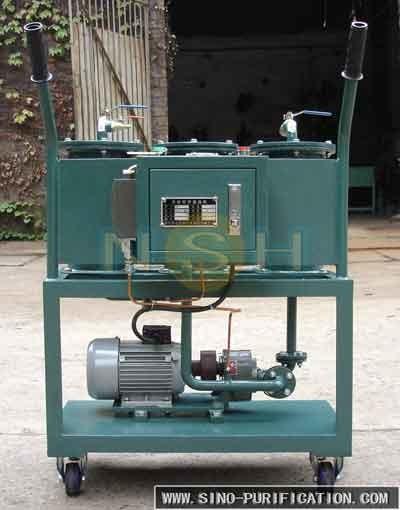

0.75kw Degassing Portable Oil Purifier 1800L/H With Double Stage
0.75kw Degassing Portable Oil Purifier 1800L/H With Double Stage
0.75kw Degassing Portable Oil Purifier 1800L/H With Double Stage
0.75kw Degassing Portable Oil Purifier 1800L/H With Double Stage
Specifications
Brand Name :
SINO-NSH
Model Number :
PF-30
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Power :
0.75kW
Capacity :
1800L/H
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

Easy Operation 0.75kw Degassing Protable Precision Lubrication Oil Purifier

Other Optional Models for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

Order Process:


Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods

0.75kw Degassing Protable Precision Lubrication Oil Purifier Description:

Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.

0.75kw Degassing Portable Oil Purifier 1800L/H With Double Stage

0.75kw Degassing Protable Precision Lubrication Oil Purifier Parameters:

Parameter Value
PF-30 PF-50 PF-80 PF-100 PF-125 PF-150 PF-200
Capacity, liters/hour 1800 3000 4800 6000 7500 9000 12000
Total Power, kW 0.75 1.1 1.5 1.5 2.2 2.2 3
Power supply Fully Customizable
Height, m ≥15
Inlet Diameter, mm 25 32 32 40 40 50 50
Outlet Diameter, mm 25 32 32 40 40 50 50
Weight(without trailer), kg 100 115 130 140 165 180 200
Processed Oil Spec Cleaness NAS(1638) ≤6
Filtration Fineness, um ≤5( or 1-5 as needed )

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950

Other Models of TF Series Turbine Oil Purifier:

NSH-TF-E Explosion-proof Turbine Oil Purifier
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.

NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level.
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.
NSH-TF-Z Coalescence and Separation Turbine Oil Purifier
Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.

Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade.

Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation.
NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant
Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils.

Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water.
Various capacities are avaliable for this system, and some optional devices such as -PLC control system, Container structure, etc.

Ps: we accept customization, welcome to inquiry!!!
