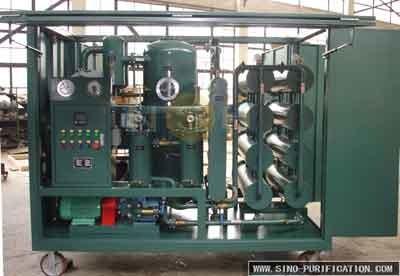

132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier
132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
VFD-200
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Power :
132kW
Product Capacity :
12000L/h
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier

Order Process:


Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods

FAQ:


1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.

Regeneration Vacuum Transformer Oil Purifier Advantages:

Compared with single-stage vacuum oil filter, this machine can dehydrate, degassing and deimpurity faster and more thoroughly, the ultimate pressure resistance value of oil is higher, and it can restore the comprehensive indexes such as antioxidant acid, alkali and water solubility of inferior degraded oil.

Regeneration Vacuum Transformer Oil Purifier Features:

-Improves reliability of high voltage transformer;
-Extends transformer service;
-Reduces oil purchase expenses;
-Efficient sorbent Reactivation cycles;
-Simplified operation;
-Low maintenance cost;

Regeneration Vacuum Transformer Oil Purifier Characteristics:


1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.

132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier

Transformer Oil Filtration Plant​ Technical Parameters:

Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Capacity, liters/hour 1800 3000 4000 6000 9000 12000 18000
Heating Power, kW 24 30 48 60 90 120 150
Total Power, kW 29 36 56 69 100 132 170
Power supply Fully Customizable
Inlet Diameter, mm 25 32 32 40 40 50 65
Outlet Diameter, mm 25 32 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1350 1500 1550 1900 2200 2400 2900
width, mm 1100 1200 1250 1400 1500 1600 1800
height, mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer), kg 600 800 900 1150 1500 1700 2400
Processed Oil Spec Water Content, ppm ≤5
Dielectric Strength, Kv ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1

Other Models Oil Purifier:

TF Series:
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties.
LV Series:
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils.
FV Series:
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set.
GER Series:
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series:
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.

132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier

132kw With Steel Enclosure Shield Regeneration Vacuum Transformer Oil Purifier
