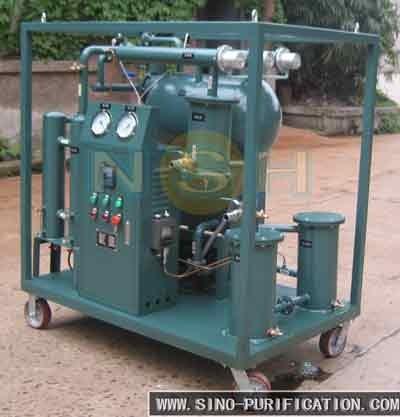

Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier
Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier
Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier
Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
VF-100
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Power :
65kW
Capacity :
6000L/H
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier

Vacuum Transformer Oil Purifier Characteristics:


1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.

Other Optional Models for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

Vacuum Transformer Oil Purifier Description:

-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.

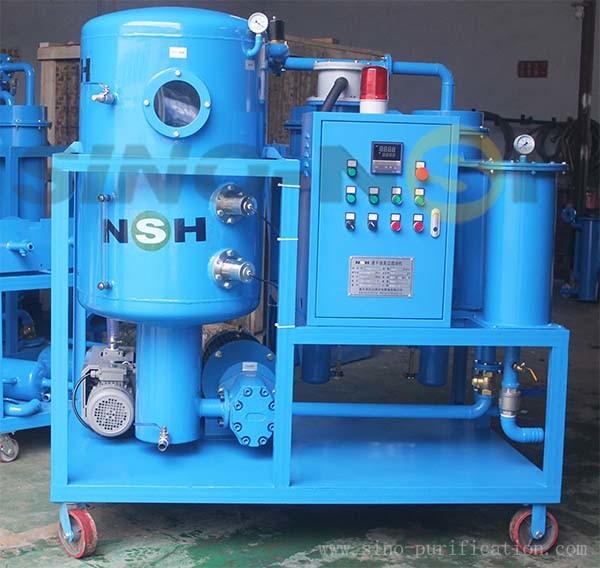

Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier

Vacuum Transformer Oil Purifier Technical Parameters:

Parameter Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power supply Fully Customizable
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40
Dimensions
(without trailer)		 length, mm 1300 1400 1400 1400 1550
width, mm 900 900 900 900 1550
height, mm 1300 1300 1300 1700 1850
Weight(without trailer), kg 300 330 350 400 650
Processed Oil Spec Water Content, ppm ≤7
Dielectric Strength, Kv ≥60
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950

Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier

Power Station Used Low Power Dehydration Vacuum Transformer Oil Purifier
