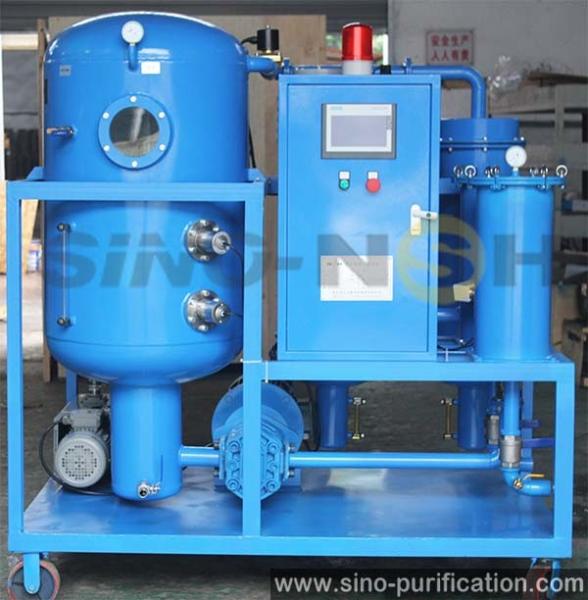

Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier
Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier
Specifications
Brand Name :
SINO-NSH
Model Number :
TF-200
Certification :
CE, ISO,SGS, SASO, SONCAP
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Total Power :
103kW
Capacity :
12000L/H
Color :
Custom
Power Supply :
Fully Customizable
Material :
Stainless Steel/Carbon Steel
Warranty :
1years
After Warranty Service: :
Video Technical Support, Online Support
Product Name :
Double-Stage Vacuum Transformer Oil Purifier
Description

Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier

Advantages:


1. Dehydration demulsification efficiency is high
Which can easily split a lot of water and remove trace water in oil.
2. Strong filtration and purification performance
Filtration accuracy can be customized.
3. Good working stability
Stable operation, reliable quality, continuous purification oil does not waste oil, flange connection does not penetrate.
4. Multi-usage
The operation is simple, scientific and reasonable.

Purifier for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

Vacuum Turbine Oil Purifier Description:

-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.

Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier

Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950

Filter maintenance:


1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the filter element, at the same time empty the shell visceral oil, clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies

Order Tips:


If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.

Other Models of TF Series Turbine Oil Purifier:

NSH-TF-E Explosion-proof Turbine Oil Purifier
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.

NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level.
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.


Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier

Automatic With Foam Level Detector Dehydration 103kw Vacuum Turbine Oil Purifier
