Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P
Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P
Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P
Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P
Specifications
Brand Name :
Sino-NSH
Model Number :
SINO-NSH-LV
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
12 working days
Packaging Details :
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Name :
oil filter
Color :
As Your Requirement
Function :
Dehydration, Degassing, Remove Impurities
Power supply :
380V/3P/50Hz(or As Needed)
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
High Light :
vacuum oil filter machine, oil purification systems
Description

Pushcart oil filter machine for hydraulic lubrication system/oil purifier filter/oil purifier manufcture

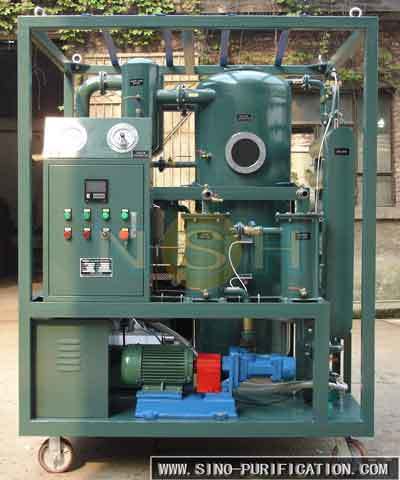

Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is multifunctional purifier which can treat various kinds of lubricant oils.

Sino-NSH-LV is mainly used to remove dissolved and free water , and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency. It has a strong anti-emulsifying capability, which could separate the large amount of water from oil and the trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.

Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.

Technical specification

Parameter Value
LV-10 LV-20 LV-30 LV-50 LV-100 LV-150 LV-200
Capacity,liters/hours 600 1200 1800 3000 6000 9000 12000
Heating Power,kW 15 18 30 45 90 120 180
Total Power,kW 17 21 35 50 96 126 186
Power supply Fully customizable
Inlet Diameter,mm 20 20 20 25 40 50 65
Outlet Diameter,mm 20 20 20 25 40 50 65
Dimensions
(without trailer)		 Length,mm 1350 1500 1550 1900 2200 2400 2900
Width,mm 1100 1200 1250 1400 1500 1600 1800
Height,mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer),kg 600 80 900 1150 1500 1700 2400
Processed Oil Spec Water content,ppm ≤ 100
Cleanliness(NAS 1638) ≤ 6
Filtration fineness,um ≤ 5(or 1-5 as needed)

Products show:

Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P

Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P

Company and factory picture:

Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P

Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P

Hydraulic Lubricated Vacuum Oil Purifier Degassing 380V 3P
