Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Specifications
Brand Name :
WELLDONE
Model Number :
SZG-(100-6000)
Certification :
CE, ISO 9001: 2008, ISO 10004
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10Sets/Months
Delivery Time :
10-40Working Days
Packaging Details :
Wooden Case + Plastic Film + Steel Frame
Hertz :
50HZ, 60HZ
Material :
SUS304/SUS316L
Installation Power :
1.5KW-55KW
Drying Temperature :
50-150℃
Heating Resource :
Steam/Thermal Oil/Hot Water
Drying Efficiency :
80%
Way to Control :
Button/Touch Screen/Remote
Loading Capcity :
25KGS/Batch-3000KGS/Batch
Description

Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure


Principle of Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure

As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.

Itemtype
Nameunit10035075010001500200030004500
total volumeL10035075010001500200030004500
working volumeL<=50<=175<=375<=500<=750<=1000<=1500<=2250
heating areaM21.1623.54.615.587.59.613.8
speedRPM644
powerKW0.751.52.2345.57.515
height of rotaring framemm18102090250026652915305533304210
total weightkg550900120013001500200030004000
desigh pressure inside tankmpa-0.09~0.096
desigh dressure inside jacketmpa<=0.3
please send us an inqiry more models.

Features of Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure

1. The boiling point of raw material will be decreased under the vacuum condition and make theevaporator increases the pushing force of heat transfer.
2. The heat source can be low pressure steam or waste heat;
3. The loss of the heat during the evaporation is only a little.
4. The disinfection treatment can be carried out before drying and there is no impurity material mixing during drying process. It is in conformity with the requirement of GMP;
5. Static vacuum dryer will not damage the shape of raw materials.


Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure


Technical Parameters of Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure

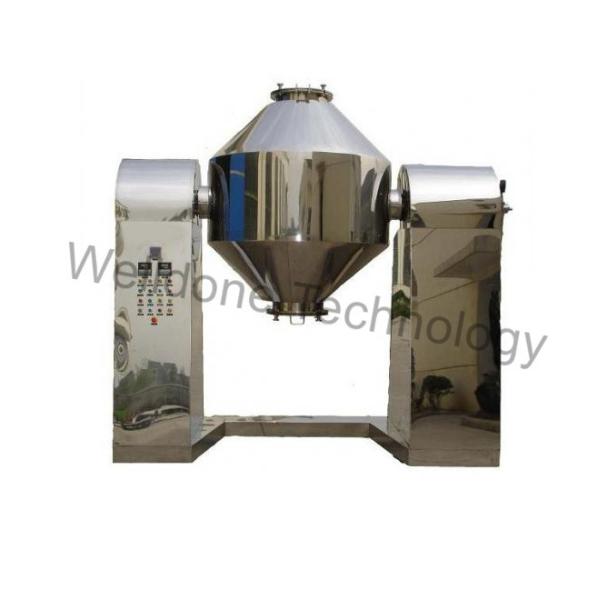

Picture of Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure



Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure
Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure

After Sell Service

Cost Effective Stable And Reliable Operation GMP Chemicals Processing Vacuum Rotary Dryer Stainless Steel Structure

Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
