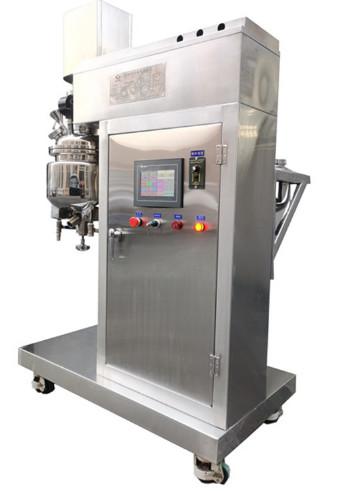

Cosmetic Emulsifier Mixer Machine Skin Care Cream High Shear Emulsifier Mixer
Cosmetic Emulsifier Mixer Machine Skin Care Cream High Shear Emulsifier Mixer
Specifications
Brand Name :
Yuan
Model Number :
ZJR-5/1300
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Provide according to demand
Material :
STainless steel 304
Design capacity :
10L
Working capacity :
8L
Heating method :
Electrically heated
Discharging method :
Tilt unloading
Vacuum in the pot :
-0.09 MPa
Homogenizer speed :
2800
Homogenizer power :
0.55KW
Description

Cosmetic High Shear Homogenizing Mixing Machine Skin Care Cream Making Equipment

Maintenance specifications
1. Clean the area around the machine at any time. There is no sewage or material on the ground. Waste generated during the production process should be centrally and quickly processed
2. Check the mixed slurry, cylindrical scraper and homogenizing filter components, and adjust and tighten them.
3. Check whether the heating tube and thermometer are intact, and tighten the terminals.
4. Check whether the water and oil circuits are leaking, and tighten them if necessary.
5. Check whether the connecting hardware of the machine is loose, adjust and tighten them.
6. Add lubricating oil and guide oil regularly.
7. Check, clean and maintain the motor and reducer, and add differential reduction oil.


Specific parameter requirements of emulsifier:

10L emulsifying pot Specific parameters
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching water phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching oil phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Design capacity 10L
Working capacity 8L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Service life Over 10 years
Homogenizer power 0.55 KW
Homogenizer speed 2800
Homogenization mode Upper homogenization
Lid opening method Manual or electric
Heating method Electric heating
Discharge method Inclined discharge
Sandwich operating pressure 0.3 MPa
Vacuum degree in the pot -0.09 MPa
Overall dimensions (m) 0.8*0.55*1.43
Wearing parts 1 year spare parts. spare parts
Warranty Period More than 1 year
Installation and The supplier is responsible for commissioning

Matching water phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Sandwich operating pressure 0.3 MPa
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Down stirring
Stirring power 0.025 KW
Stirring speed 1440r/min
Matching oil phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Upper (lower) stirring
Stirring power 0.025 KW
Stirring speed 1440r/min


Other specific requirements:
1.The equipment is accompanied by the product manual.
2.The supplier provides equipment assembly drawings and pipeline installation drawings. When the equipment needs maintenance, the buyer shall notify the supplier in writing, and the supplier will arrive within 2 days after receiving the notice to ensure timely after-sales service.
3.Equipment. Supplier warranty for one year, lifetime maintenance.
4.This annex has the same legal effect as the contract.
5.The inner wall of the pot (316L) requires mirror polishing 300 mesh, equipment size:
6. Various pipelines are required to be made of stainless steel (316L material is required for the contact material part)
7. Dead weight of 10L emulsifier: about 500Kg
