20L - 200L Stainless Steel Vacuum Emulsifying Machine cosmetic high shear emulsifier mixer
20L - 200L Stainless Steel Vacuum Emulsifying Machine cosmetic high shear emulsifier mixer
Specifications
Brand Name :
Yuan
Model Number :
ZJR-5/1300
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Provide according to demand
Material :
Stainless steel 304
Design capacity :
10L
Working capacity :
8L
Heating method :
Electrically heated
Discharging method :
Tilt unloading
Vacuum in the pot :
-0.09Mpa
Homogenizer speed :
2800
Homogenizer power :
0.55KW
Description

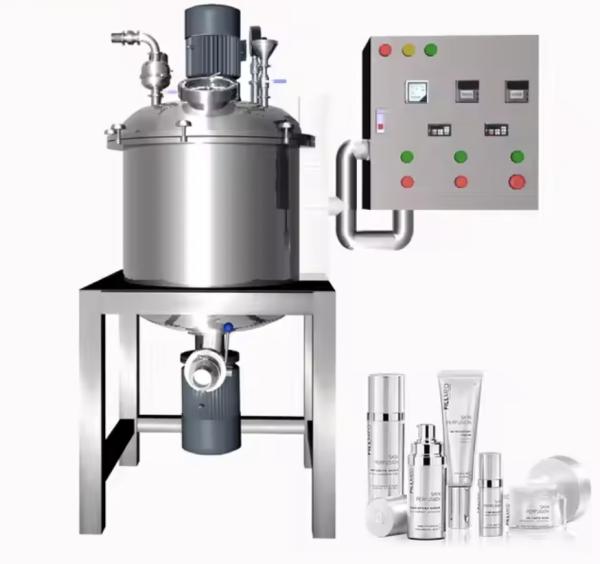

20L-200L Stainless Steel Vacuum Emulsifying Mixing Machine Homogenizer Mixer For Cosmetics Industries


Vacuum emulsifying mixer machine consist of Main emulsifying tank, Vacuum system, Fixed type vacuum system (OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics/chemical/food products.

Application:
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint
Industry: Paints, Synthetic resin paint
Others: Color, Wax, Shoe cream, Coating liquid

Specific parameter requirements of emulsifier:

10L emulsifying pot Specific parameters
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching water phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching oil phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Design capacity 10L
Working capacity 8L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Service life Over 10 years
Homogenizer power 0.55 KW
Homogenizer speed 2800
Homogenization mode Upper homogenization
Lid opening method Manual or electric
Heating method Electric heating
Discharge method Inclined discharge
Sandwich operating pressure 0.3 MPa
Vacuum degree in the pot -0.09 MPa
Overall dimensions (m) 0.8*0.55*1.43
Wearing parts 1 year spare parts. spare parts
Warranty Period More than 1 year
Installation and The supplier is responsible for commissioning

Matching water phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Sandwich operating pressure 0.3 MPa
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Down stirring
Stirring power 0.025 KW
Stirring speed 1440r/min
Matching oil phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Upper (lower) stirring
Stirring power 0.025 KW
Stirring speed 1440r/min
