Rotary Vibrating Screen Machine For Cocoa Coffee Soy Beans
Rotary Vibrating Screen Machine For Cocoa Coffee Soy Beans
Rotary Vibrating Screen Machine For Cocoa Coffee Soy Beans
Rotary Vibrating Screen Machine For Cocoa Coffee Soy Beans
Specifications
Brand Name :
DY
Model Number :
DY-2000
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$1500~$7000 per set
Payment Terms :
T/T,D/A,L/C,D/P,Western Union
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 15 work days
Description

Product Display

Product Introduction

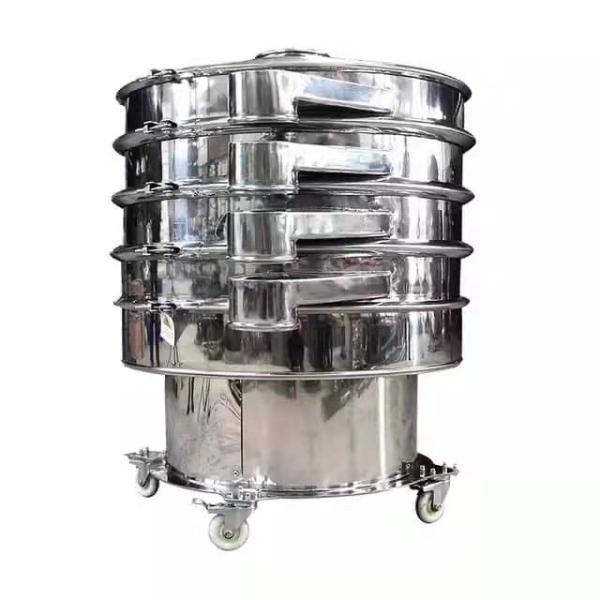

The machine consists of vertical vibration motor, screen base, mesh frame, screening chamber and rubber vibration ring and so on. The vibrating ball on mesh bracket flaps the mesh continuously so that the screen is not easy to be blocked. This machine can be used either for single layer or multi layers grading.
Round rotary vibro screen has a vertical motor system, with eccentric hammers being installed on top and bottom of the motor, where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement into the sieving surface, reaching the purpose of screening, grading, removing impurities anf filtration.
Product Parameters
Model
Power (kw)
Valid Diameter (mm)
Layer (s)
DYC-600
0.55
550
1-3 layers
DYC-800
0.75
750
DYC-1000
1.1
950
DYC-1200
1.5
1150
DYC-1500
2.2
1450
DYC-1800
3
1750

Main Features

1).Remove the thorn, fine polish, and prevent the handle

2).All our equipment use brand motor(18 months warranty) and bearing.

3).Screen frame, medical grade using double-sided 8K mirror panel, smooth, high cleanlines.

4).The reinforced rubber spring has good elasticity, uniform vibration force and good stability.

5).Swift locking device, easy to operate for cleaning, suitable for food, medicine and other industries.

6).Input reasonable designing, avoid the raw materials outflow.

7).Beam ring buckle with reinforced head, safer, longer life, less deformation, high strength.

8).Output part, the whole plate data cutting, blanking, more solid, good appearance

Product Application

1. Chemical industry: resin, pigment, medicine, grease, paint, palette, etc. powders and particles.

2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc. powders and particles.


3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. powders and particles.

4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. powders and particles.

5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc. powders and particles.

6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc. powders and particles.

Strict inspection principle

* Self inspection
* Mutual inspection
* Special inspection

Strict inspection procedure

* Raw materials inspection
* Parts inspection
* assembly inspection
