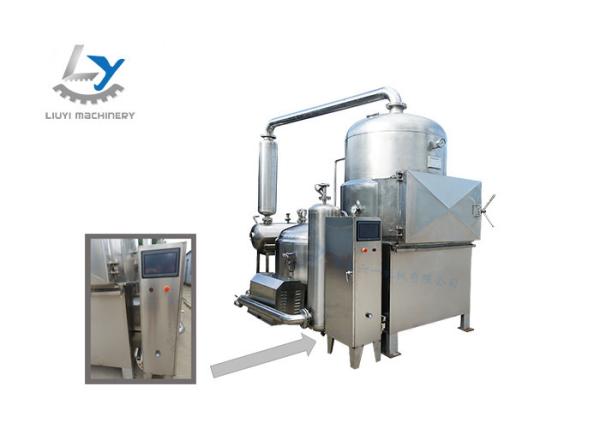

Automatic Vacuum Frying Equipment , Potato Chips Frying Machine Reliable Working
Advantages of vacuum fryer
1. Color retention effect: With vacuum frying, the frying temperature is greatly reduced, and the oxygen concentration in the fryer is also greatly reduced. Fried food is not easy to fade, discolor, brown, and can maintain the color of the raw material itself. For example, kiwi fruit is extremely susceptible to heat browning. If it is vacuum fried, it can maintain its green color.
2. Preservative effect: vacuum frying, raw materials are heated in a sealed vacuum state. Most of the flavor components in the raw materials are water-soluble and do not dissolve in fats and oils, and with the dehydration of the raw materials, these flavor components are further concentrated. Therefore, the vacuum frying technology can be used to preserve the flavor of the raw material itself.
3. Decrease the degree of fat deterioration: The deterioration of frying oil includes oxidation, polymerization, and thermal decomposition, and it is mainly caused by water or water vapor in contact with oil to produce hydrolysis. During the vacuum frying process, the oil is in a negative pressure state, and the German-dissolved gas quickly escapes in large quantities. The generated water vapor pressure is low and the frying temperature is low. As a result, the degree of deterioration of the fat is greatly reduced.
The vacuum frying machine, also called low temperature vacuum de-oiling and dehydration machine. It utilized low temperature vacuum frying. This machine makes it possible to fry fruit and vegetables which cannot be deep-fried.
Liuyi food machinery company possesses patented technology. Our special heating system can speed up the heating process and shorten the production time.
Frying temperature (℃) | Internal oil content (g/g solid) |
Vacuum frying at 120 | 0.072 |
Atmospheric frying at 185 | 0.5 |
Model | VF-LY50 | VF-LY100 | VF-LY200 |
Basket Size | dia600*500 | dia750*530 | dia1200*600 |
L*W*H | 1400*3500*2500 | 1800*4000*2900 | 2500*4500*3100 |
Vacuum Degree | -0.095mpa~-0.098mpa | ||
Steam Pressure | 0.4~0.8mpa (adjustable) | ||
Working temperature | 75-110℃ | 75-110℃ | 75-110℃ |
Pump Power | 3kw | 5.5kw | 7.5kw |
Vacuum Pump Power | 7.5kw | 11kw | 15kw |
Motor Power | 3kw | ||
Capacity | 50kg/batch | 100kg/batch | 200kg/batch |
Total Power | 15kw | 22kw | 30kw |
Feeding | 30~50kg/time | 80~100kg/time | 170~200kg/time |
Raw Material Input | 30kg-50kg | 80kg-100kg | 170kg-200kg |
- Oil storage tank
It is for oil storage before frying. The oil will be heated in it firstly. During frying, the oil will be cycled between oil storage tank and frying pot.
- PLC control system
Brand: Mitsubishi
It is control the whole machine.
This make the machine operate fully automatically. No need to manual during processing.
- Touch screen
Brand: Mitsubishi
The new type is connect directly with the machine body, not separate part.
It is easy to understand and operate.
- Electrical Components
Brand: Schneider
It mainly includes dis-connector, frequency converter and thermal overload relay.
Catalog for Automatic Vacuum Frying Machine.pdf
In recent years, our company's technological innovation has continued to develop. The number of invention patents has continuously increased. Companies in good faith, quality, innovation, professionalism, unity, and enterprising, to achieve manufacturing, installation, one-stop after-sales service. We can better serve our customers. Excellent professional technical and sales talents, as well as advanced technology and engineering level, will solve the challenges you face in the production.
Our company will sincerely cooperate with friends from all walks of life to develop together.
1. Fumigation wooden case with water-proof embrace
2. Nude pack after plastic film wrapping
3. Upon your requirements
We provide high quality service:
1) Consultation before, during, and after sales;
2) Project planning and design;
3) Debugging until everything is functional;
4) Shipping management from factory to the destination;
5) Installing, maintenance and operation training;
6) New production techniques and formulas;
7) 1 year complete warranty and life-time maintenance service.
FAQ
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2) How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacturer. You will get competitive price and high quality.
3) Can you guarantee your quality?
Of course. We are the factory. More important, we put a high value on our reputation. High quality is our principle all the time. You can be assured on our production completely.
4) How long does the whole procedure being worked out?
After you place an order, for small quantity 15-20 days is enough. For big quantity, we can talk further.
5) What about the transportation and delivery date?
Normally we use sea for shipment to save customer's money. It is about 25-40 days. It also depends on which country and port you are.
